To enable RIP debugging, use the following command in the EXEC privilege mode:
Figure 40-6 shows the confirmation when the debug function is enabled.
Figure 40-6. debug ip rip Command Example
To disable RIP, use the no debug ip rip command.
RIP Configuration Example
The example in this section shows the command sequence to configure RIPv2 on the two routers shown in
Figure 40-7 — “Core 2” and “Core 3”. The host prompts used in the example screenshots reflect those
names. The screenshots are divided into the following groups of command sequences:
• Configuring RIPv2 on Core 2 on page 853
• Core 2 Output on page 853
• RIP Configuration on Core 3 on page 855
• Core 3 RIP Output on page 855
• RIP Configuration Summary on page 857

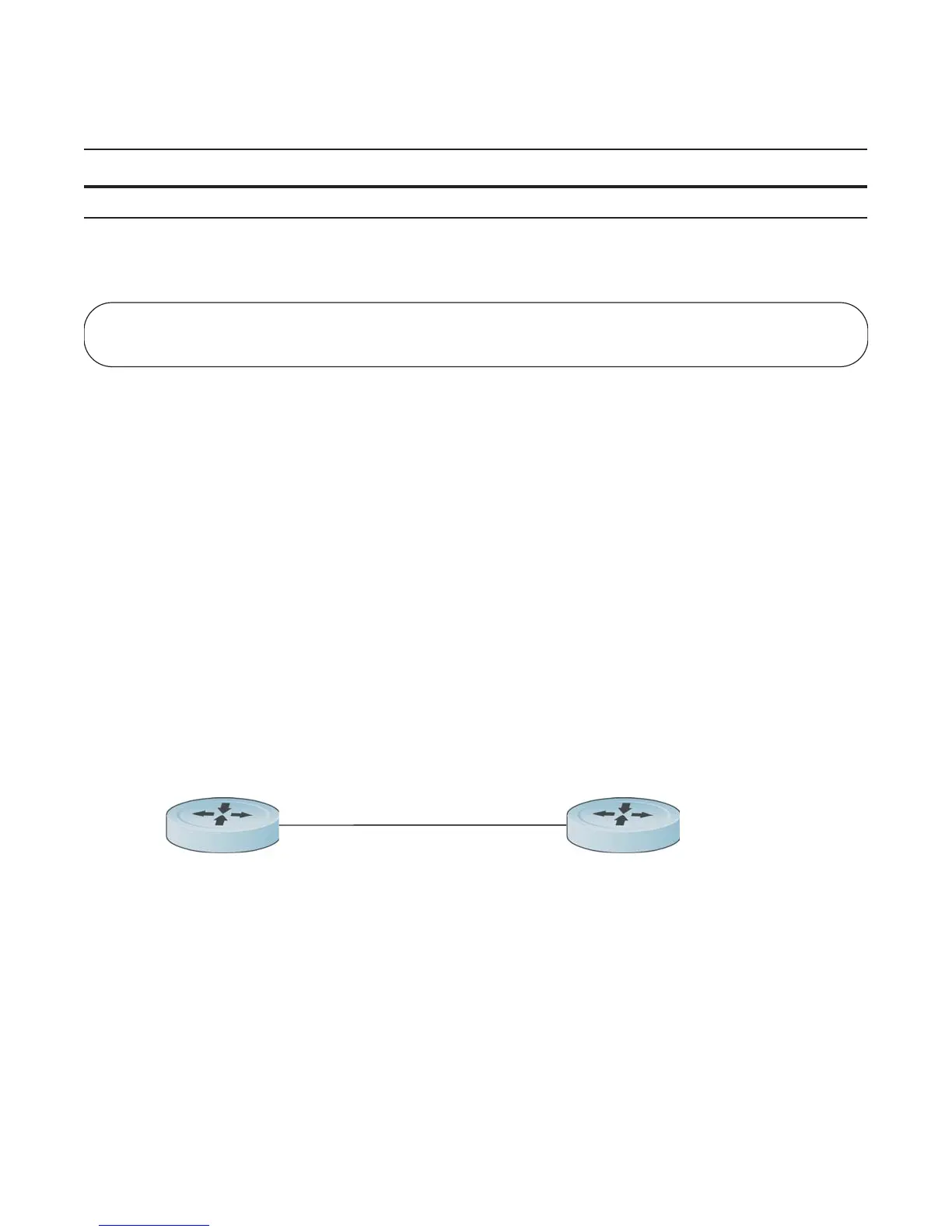

Figure 40-7. RIP Topology Example
Command Syntax Command Mode Purpose
debug ip rip [interface | database | events | trigger] EXEC privilege Enable debugging of RIP.
FTOS#debug ip rip
RIP protocol debug is ON
FTOS#
GigE 3/11
10.11.30.1 /24
GigE 3/21
10.11.20.1 /24
GigE 2/11
10.11.10.1 /24
GigE 2/31
10.11.20.2 /24
Core 2 Core 3
GigE
2/31
GigE
3/21
GigE 3/43
192.168.1.0 /24
GigE 3/44
192.168.2.0 /24
GigE 2/41
10.200.10.0 /24
GigE 2/42
10.300.10.0 /24
To Next Page
