Link Layer Discovery Protocol (LLDP) | 653

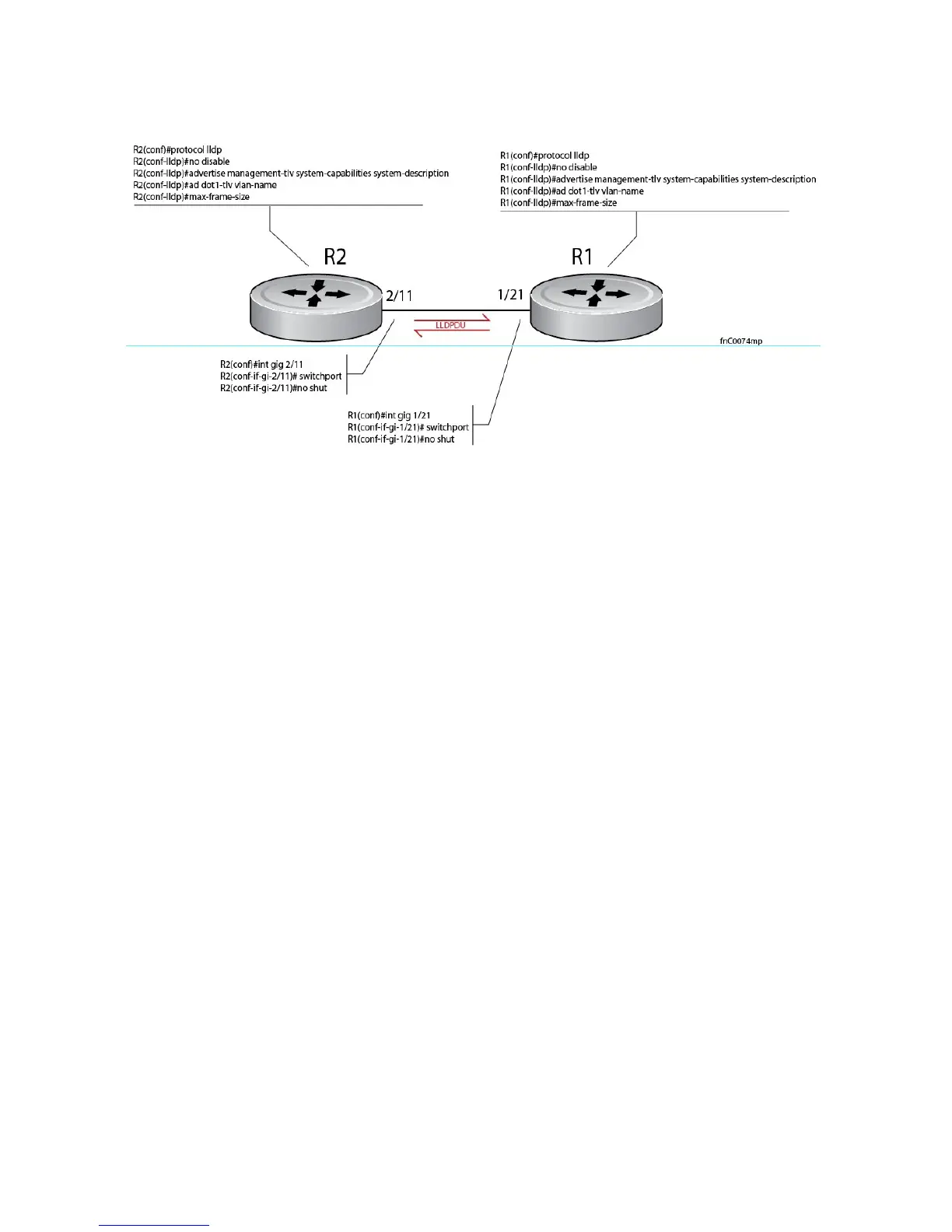

Figure 30-8. Configuring LLDP

Viewing the LLDP Configuration

Display the LLDP configuration using the command show config in either the CONFIGURATION or

INTERFACE mode, as shown in Figure 30-9 and Figure 30-10, respectively.

Figure 30-9. Viewing LLDP Global Configurations

R1(conf)#protocol lldp

R1(conf-lldp)#show config

protocol lldp

advertise dot1-tlv port-protocol-vlan-id port-vlan-id

advertise dot3-tlv max-frame-size

advertise management-tlv system-capabilities system-description

hello 10

no disable

R1(conf-lldp)#
