668 | Multicast Source Discovery Protocol (MSDP)
www.dell.com | support.dell.com

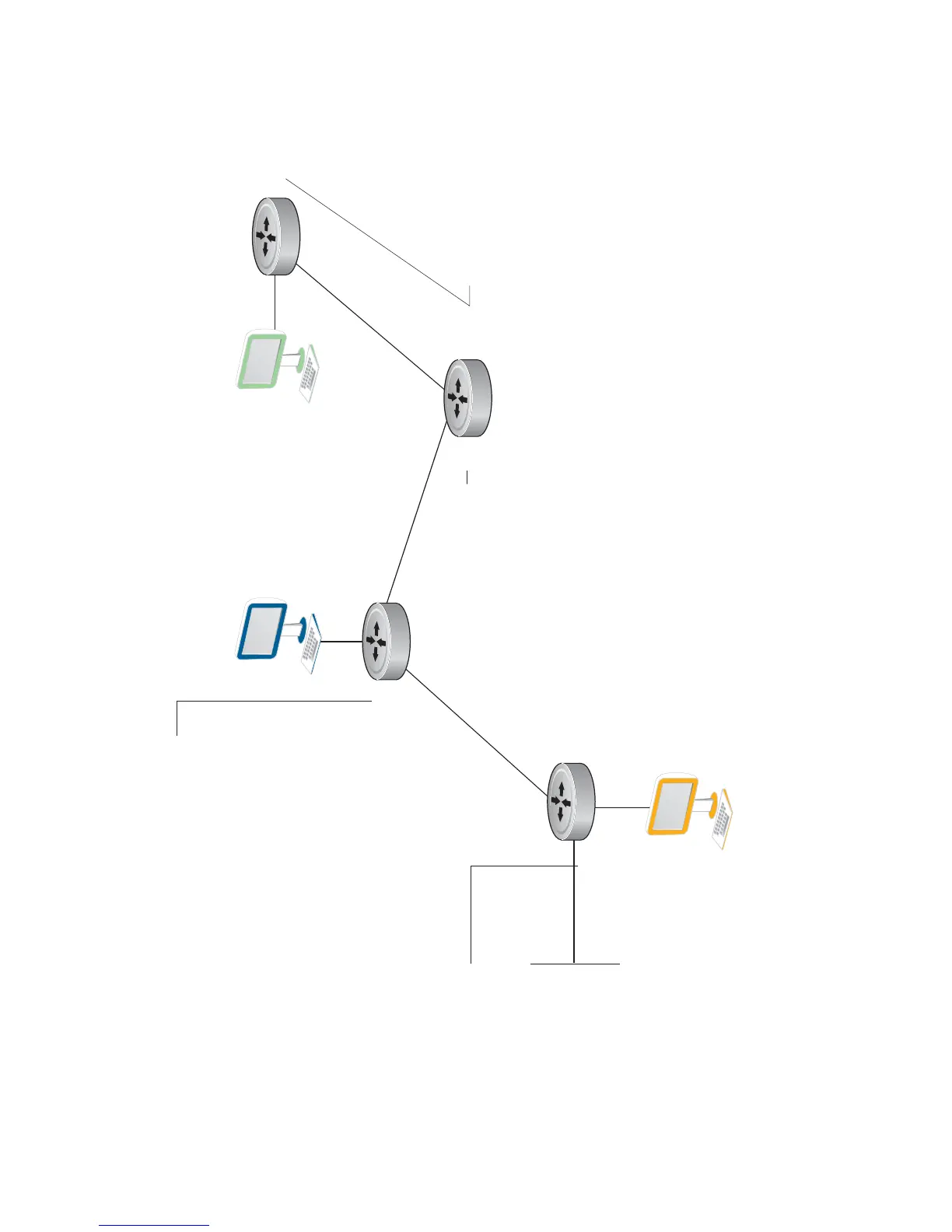

Figure 31-3. Configuring Interfaces for MSDP
R1
R2
R3
R4
1/1
1/21
2/11
2/31
3/21
3/41
4/31
4/1
1/2
PC 1
PC 2
PC 3
2/1
interface GigabitEthernet 1/1 ip pim sparse-mode ip address 10.11.3.1/24 no shutdown ! interface GigabitEthernet 1/2 ip address 10.11.2.1/24 no shutdown ! interface GigabitEthernet 1/21 ip pim sparse-mode ip address 10.11.1.12/24 no shutdown ! interface Loopback 0 ip pim sparse-mode ip address 192.168.0.1/32 no shutdown
: 10.11.3.2/24
: 10.11.4.2/24
: 10.11.5.2/24
interface GigabitEthernet 2/1 ip pim sparse-mode ip address 10.11.4.1/24 no shutdown ! interface GigabitEthernet 2/11 ip pim sparse-mode ip address 10.11.1.21/24 no shutdown ! interface GigabitEthernet 2/31 ip pim sparse-mode ip address 10.11.0.23/24 no shutdown ! interface Loopback 0 ip address 192.168.0.2/32 no shutdown
interface GigabitEthernet 3/21 ip pim sparse-mode ip address 10.11.0.32/24 no shutdown ! interface GigabitEthernet 3/41 ip pim sparse-mode ip address 10.11.6.34/24 no shutdown ! interface Loopback 0 ip pim sparse-mode ip address 192.168.0.3/32 no shutdown
interface GigabitEthernet 4/1 ip pim sparse-mode ip address 10.11.5.1/24 no shutdown ! interface GigabitEthernet 4/31 ip pim sparse-mode ip address 10.11.6.43/24 no shutdown ! interface Loopback 0 ip address 192.168.0.4/32 no shutdown
