Open Shortest Path First (OSPFv2 and OSPFv3) | 725

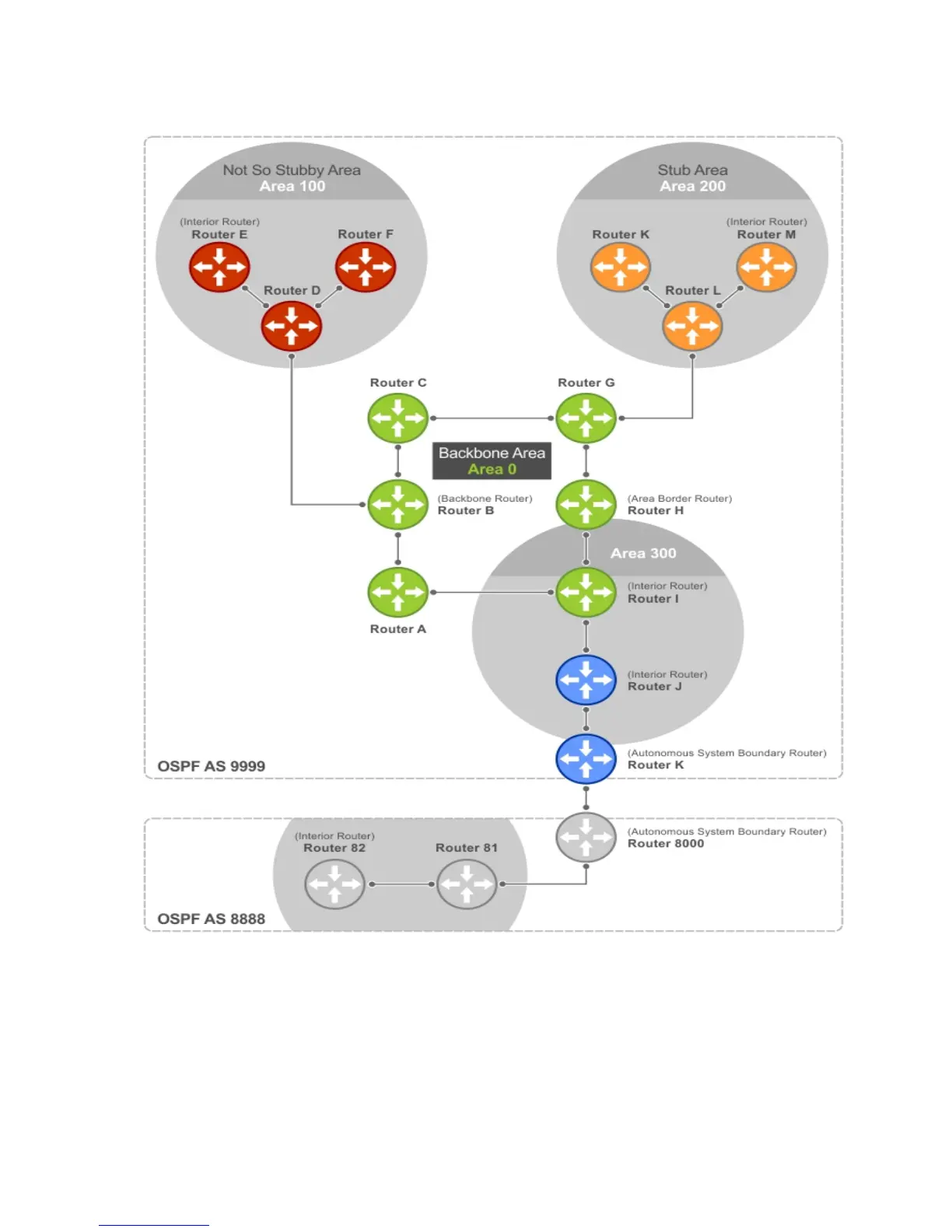

Figure 34-2.
OSPF Routing Examples
Backbone Router (BR)
A Backbone Router (BR) is part of the OSPF Backbone, Area 0. This includes all Area Border Routers
(ABRs). It can also include any routers that connect only to the Backbone and another ABR, but are only
part of Area 0, such as Router I in Figure 34-2 above.
