Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 109
Power supply
6.1.1.2 Disconnecting internal power cables

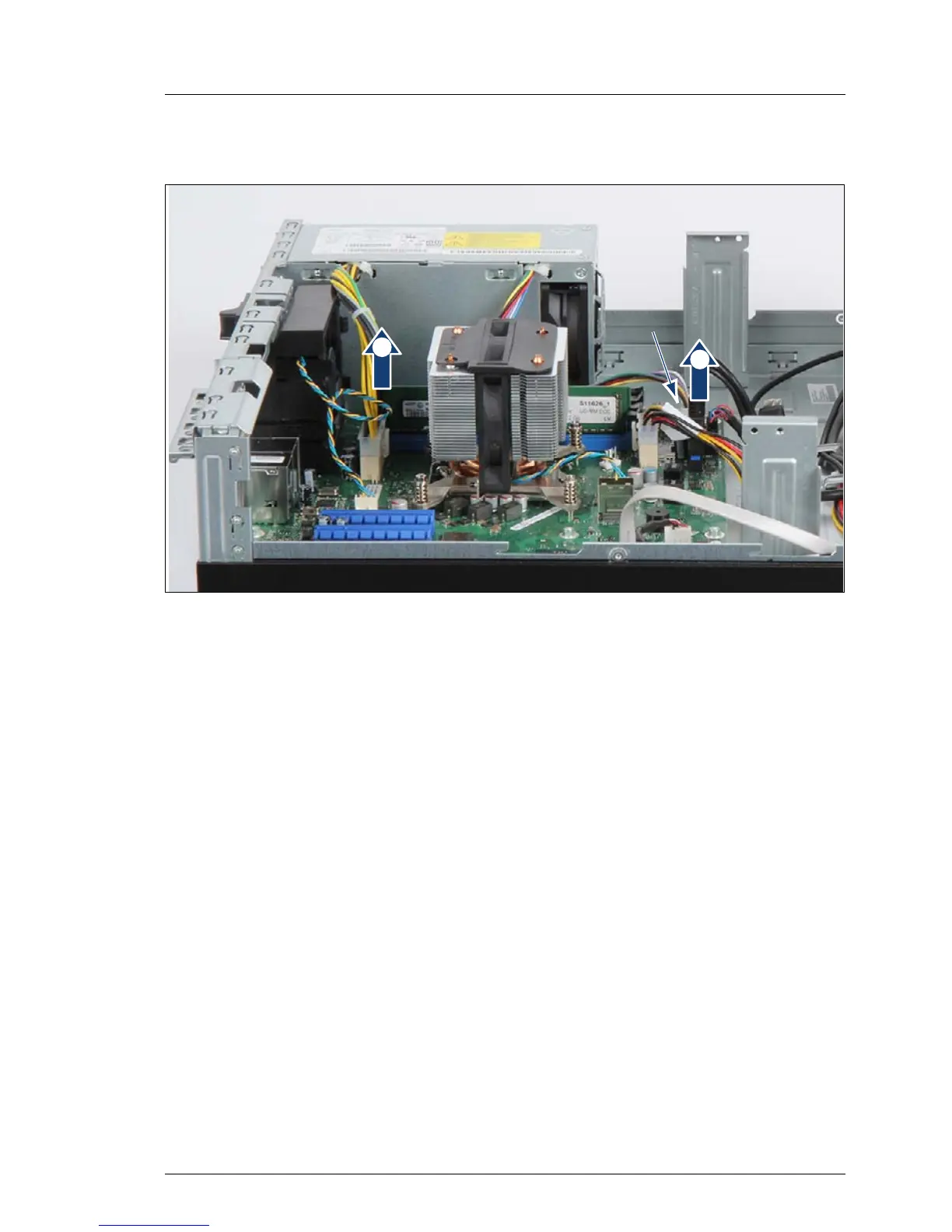

Figure 29: Disconnecting internal power cables
Ê Disconnect the PSU power management connector from system board
connector PC2009 (1).
Ê While pressing the release latch (see arrow) on the connector, disconnect
the PSU ATX power connector from system board connector POWER1 (2)
햲
햳
