Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 255
Accessible drives
12.3.1.4 Installing the backup drive

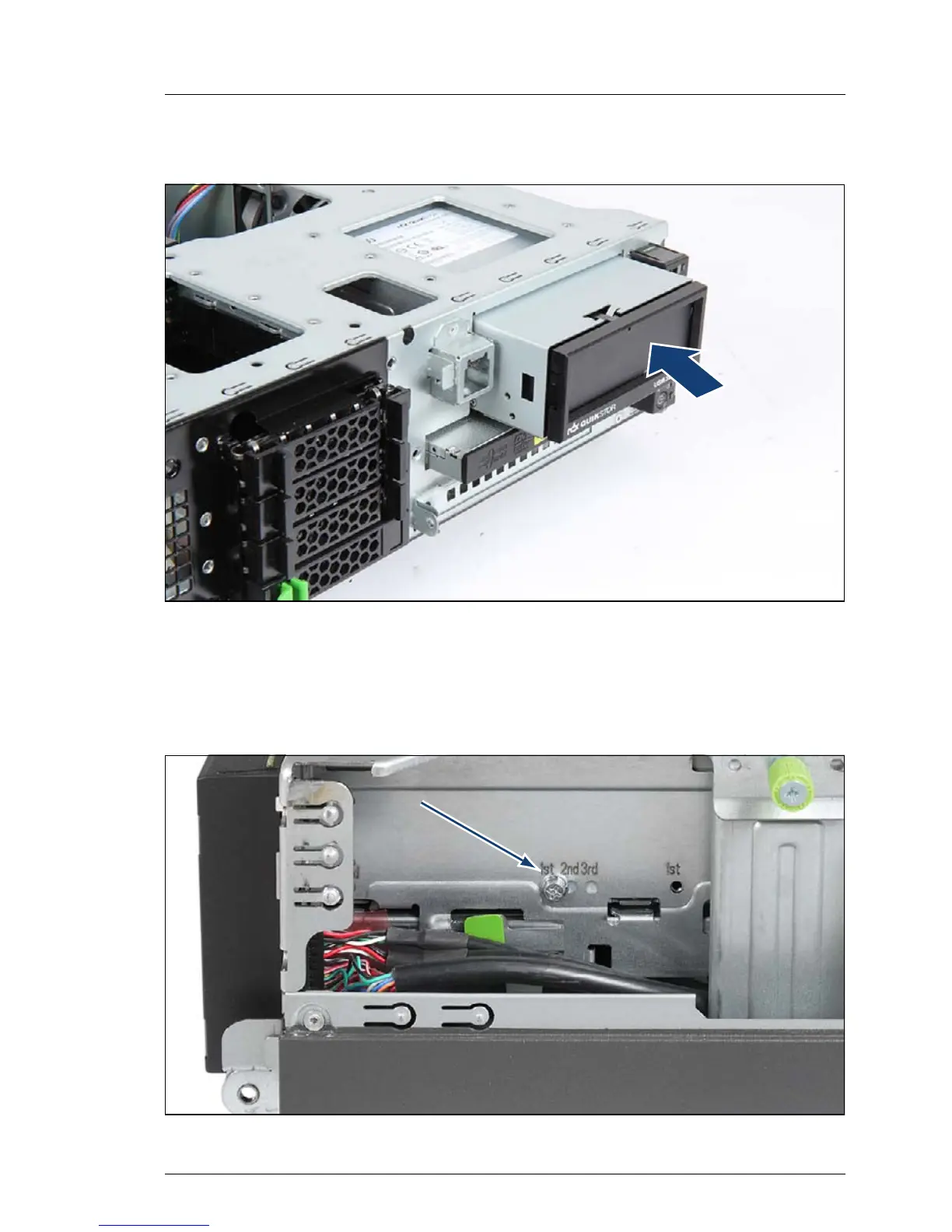

Figure 148: Installing the backup drive
Ê Insert the backup drive into its installation bay.
Ê Carefully push back until the backup drive cover plate is flush with the front
panel.
Figure 149: Inserting the screw
