Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

154 Upgrade and Maintenance Manual TX1320 M1
System fan and HDD fan
Ê Push the fan module in the direction of arrow (2) to disengage the retaining
brackets on the server rear.
Ê Lift the fan module out of the chassis (3).
8.1.3 Removing the fan from the holder

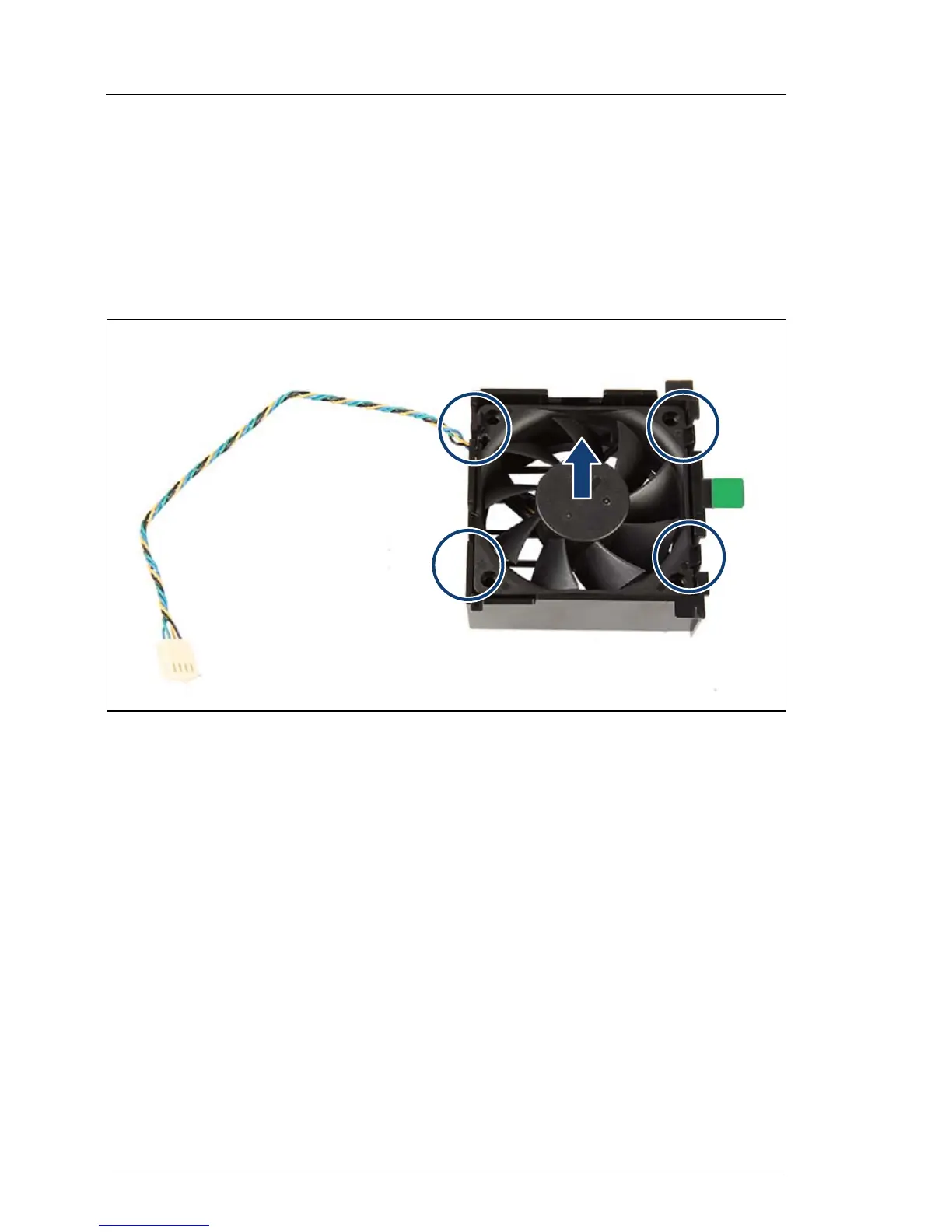

Figure 62: Removing the fan from the holder
Ê Unlock the fan (see circles).
Ê Remove the fan from the holder (see arrow).

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
