Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

332 Upgrade and Maintenance Manual TX1320 M1
Appendix
Depending on BIOS settings, the shared LAN connector may also be used as
a management LAN connector. For further information, please refer to the
"D3239 BIOS Setup Utility for FUJITSU Server PRIMERGY TX1320 M1 S3
Reference Manual".
The serial connector COM1 can be used as default interface or to communicate
with the iRMC S4.
I The chipset offers two integrated USB 2.0 Rate Matching Hubs (RMHs).
that enable lower power requirements and manages the transition of the
communication data rate from the high speed of the host controller to the
lower speed of USB full speed / low speed devices.
16.3.1.5 I/O panel indicators

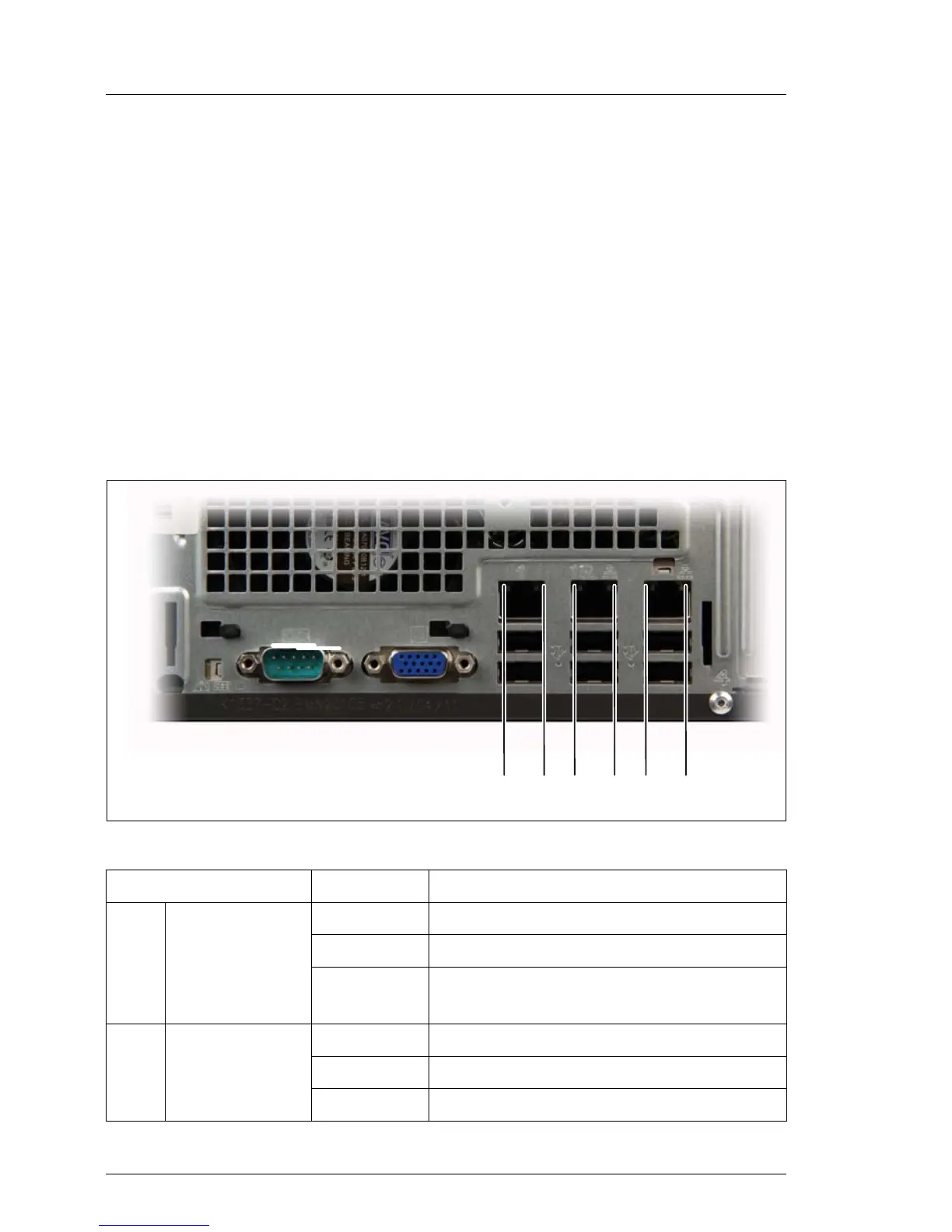

Figure 207: Indicators on the connector panel: LAN indicators
Indicator Status Description
1
LAN
link/transfer
green on LAN connection established
off no LAN connection
green
flashing
data transfer in progress
2 LAN speed
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
/ 0 / 0 / 0

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
