Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives
7.4.1.5 Installing the air duct (if applicable)

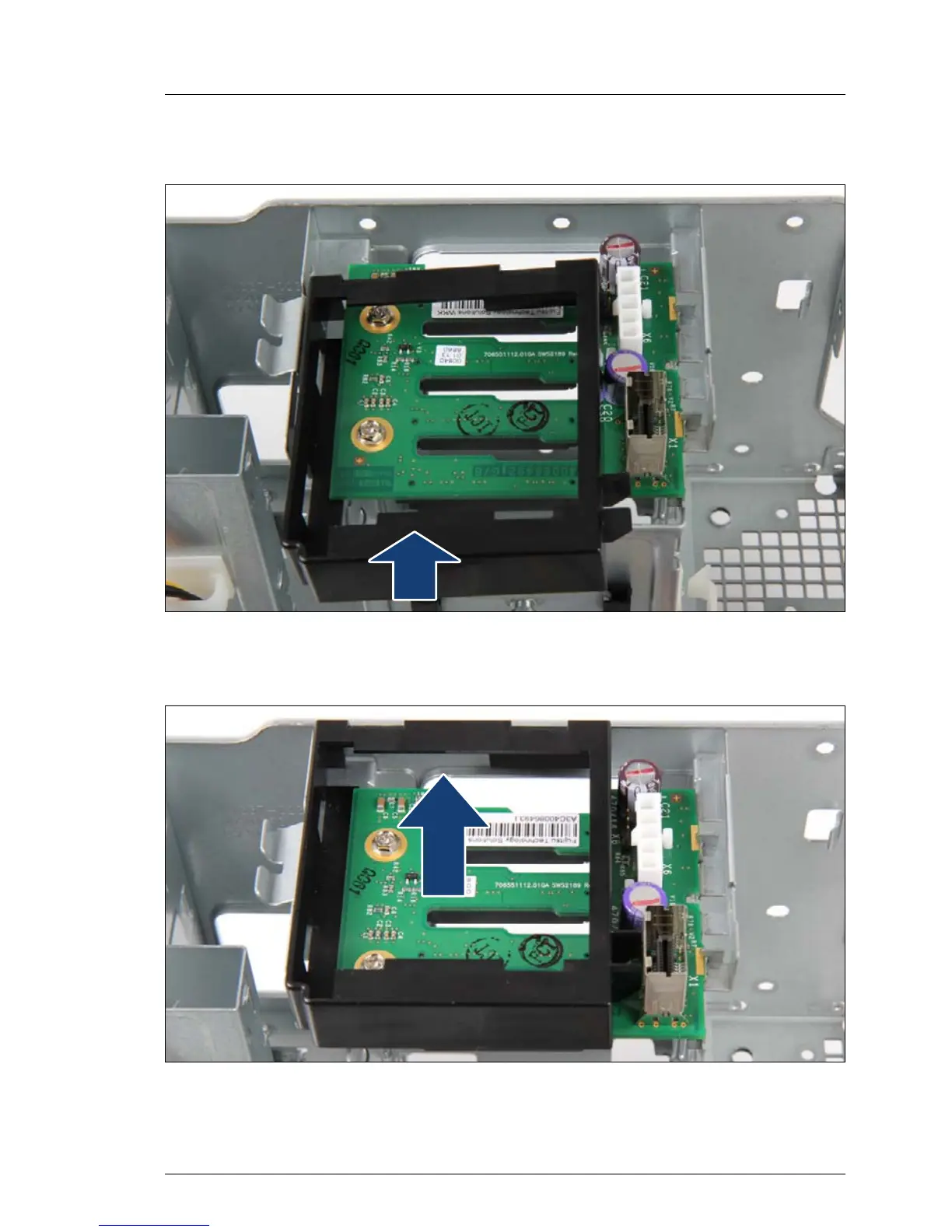

Figure 57: Inserting the air duct
Ê Insert the air duct in a slight angle.
Figure 58: Positioning the air duct
Ê Push the air duct to the chassis as far as possible.
