190 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units
Ê Insert the holder into the chassis so that the three shoulder screw caps on
the chassis floor rest in the wide ends of the keyhole slots on the holder (1).
Ê Slide the holder to the right as far as it will go.
The shoulder screw caps on the chassis floor will lock in the narrow ends of
the keyhole slots on the holder (2).
9.3.1.5 Connecting the FBU adapter cable to the TFM

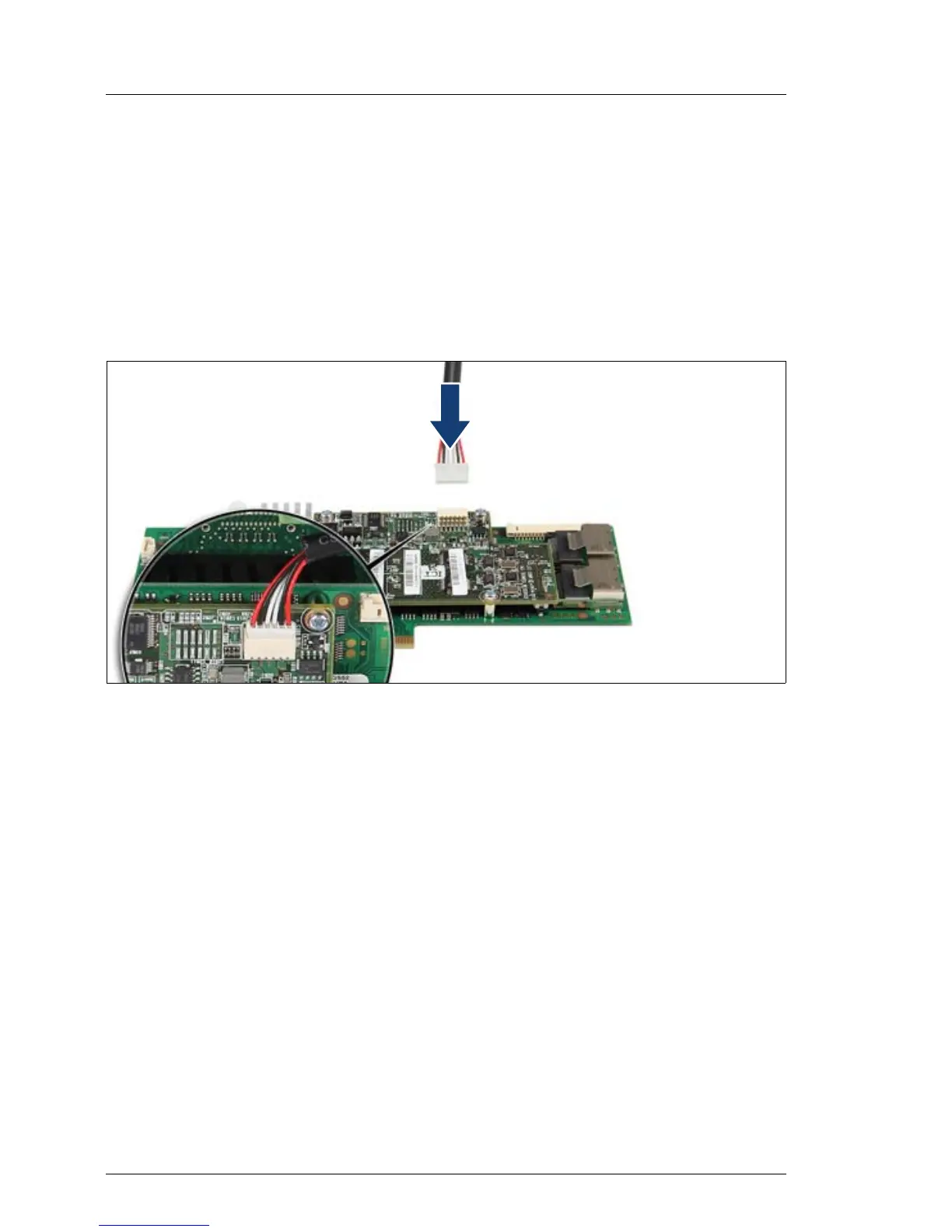

Figure 91: Connecting the FBU adapter cable to the TFM
Ê Connect the FBU adapter cable to the TFM.
Ê Install the RAID controller with TFM as described in section "Installing
expansion cards" on page 174.
