Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 189
Expansion cards and backup units

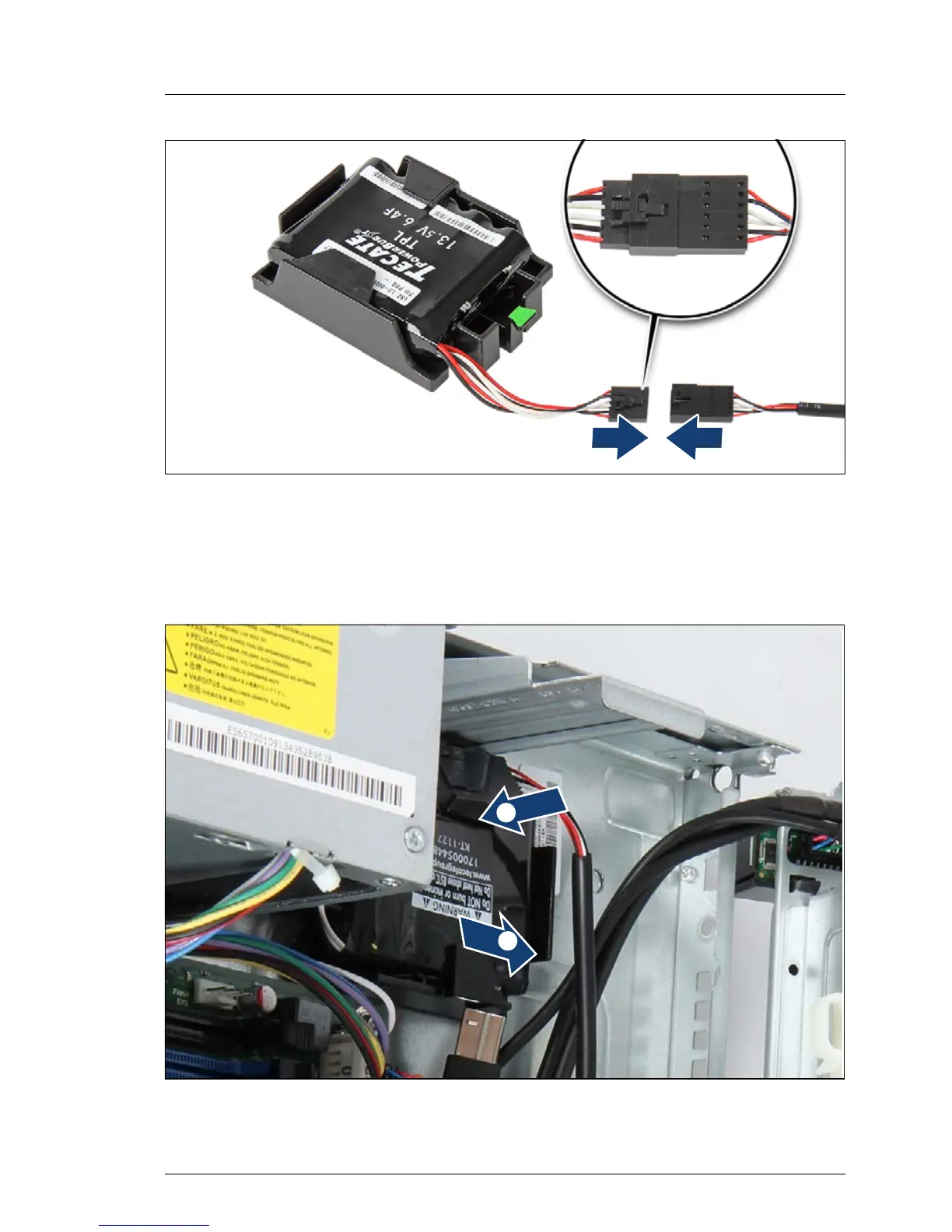

Figure 89: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU to the FBU adapter cable as shown.
9.3.1.4 Installing the FBU holder into the chassis
Figure 90: Installing the FBU holder
햲
햳
