Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

158 Upgrade and Maintenance Manual TX1320 M1
System fan and HDD fan

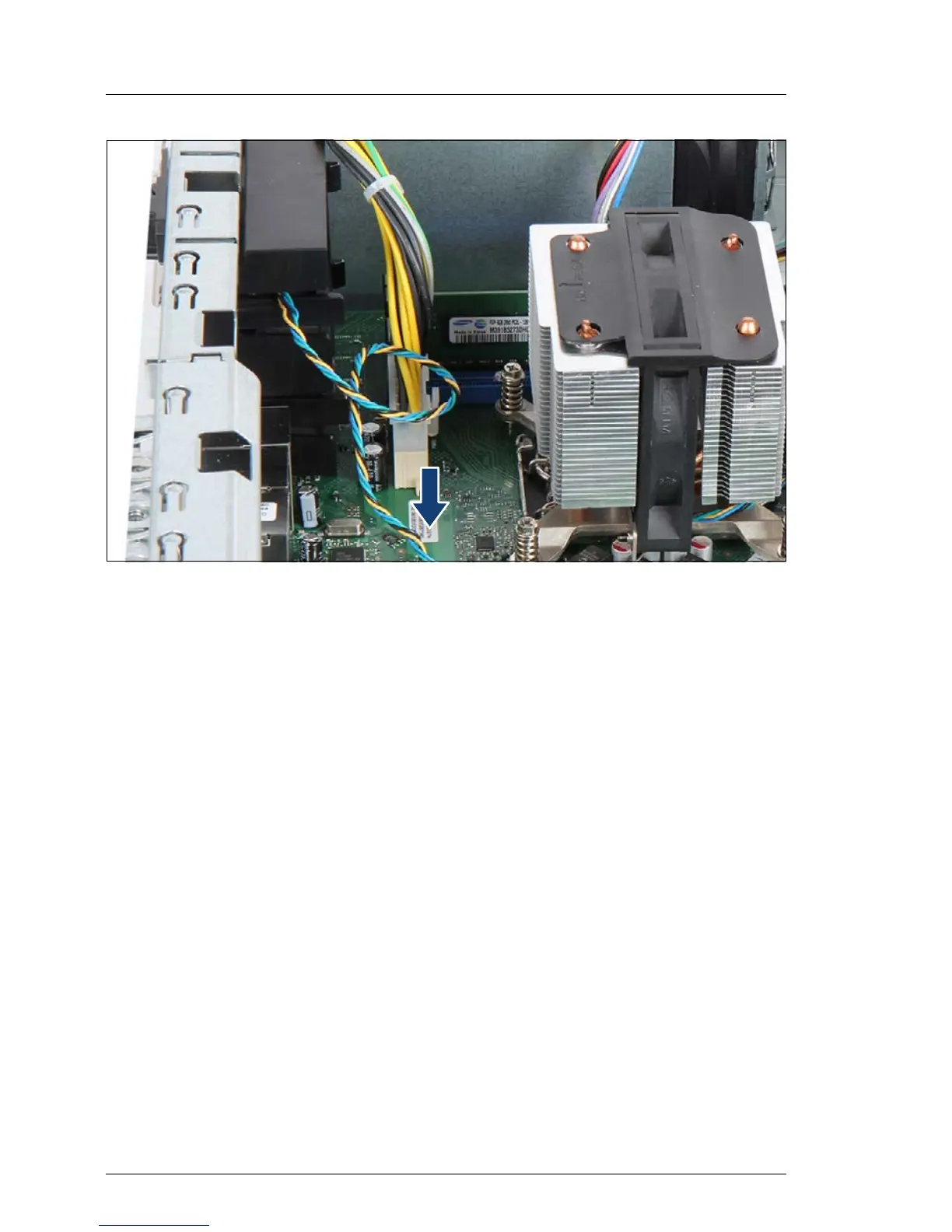

Figure 66: Connecting the system fan cable
Ê Connect the fan cable to system board connector FAN1 SYS.
8.1.6 Concluding steps
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê Reconnect the AC power cord to the power supply unit.
Ê "Performing a fan test after replacing a defective fan" on page 104

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
