Hard disk drives / solid state drives
7.4.1.3 Removing the 2.5-inch HDD SAS / SATA backplane

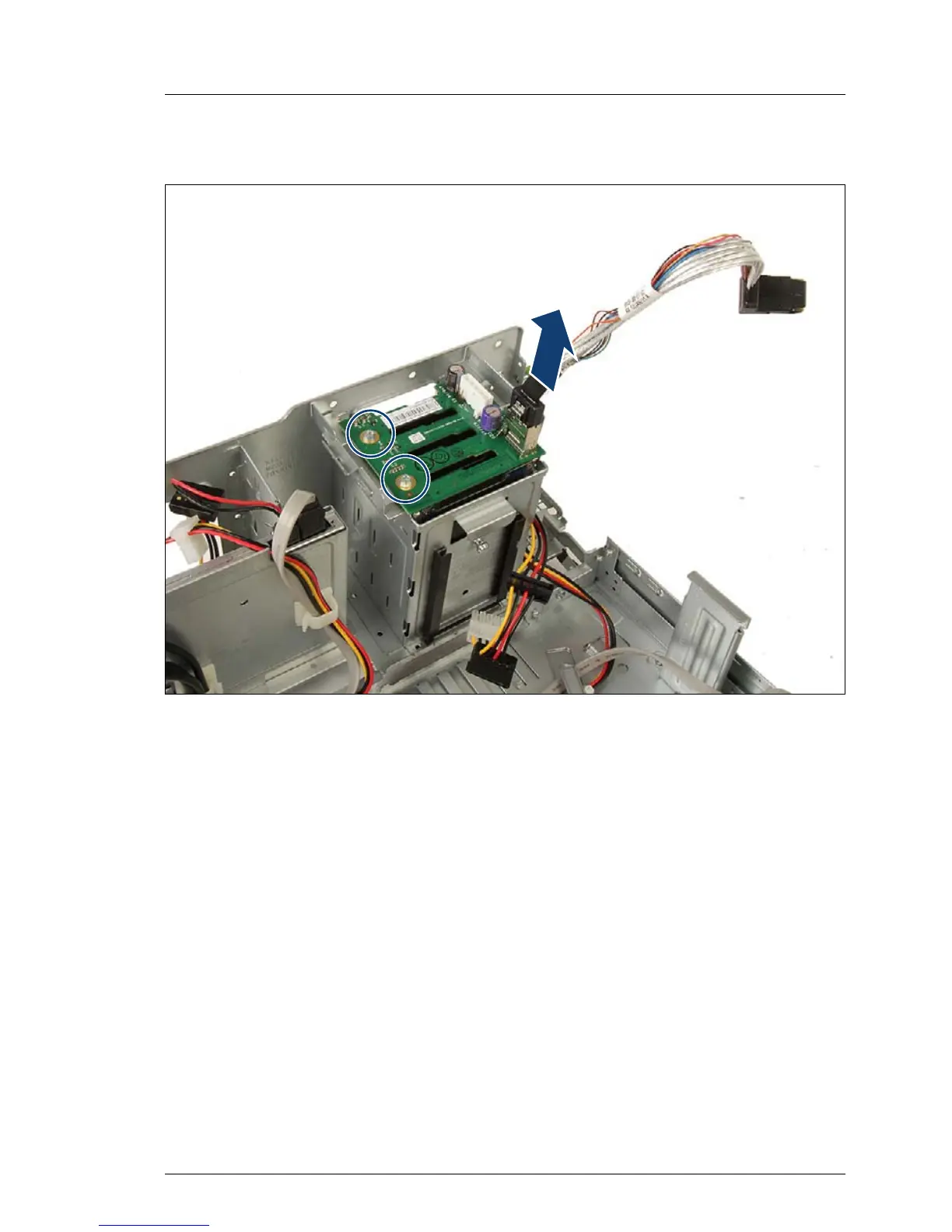

Figure 53: Disconnecting cables from the 2.5-inch HDD SAS / SATA backplane
Ê Disconnect the SATA cables from the 2.5-inch HDD SAS / SATA backplane.
Ê Remove the two screws of the defective 2.5-inch HDD SAS / SATA
backplane (see circles).

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
