Expansion cards and backup units
Ê Remove the FBU cable from the cable clamp (1)..
Ê Carefully disconnect the FBU cable from the RAID controller (2).

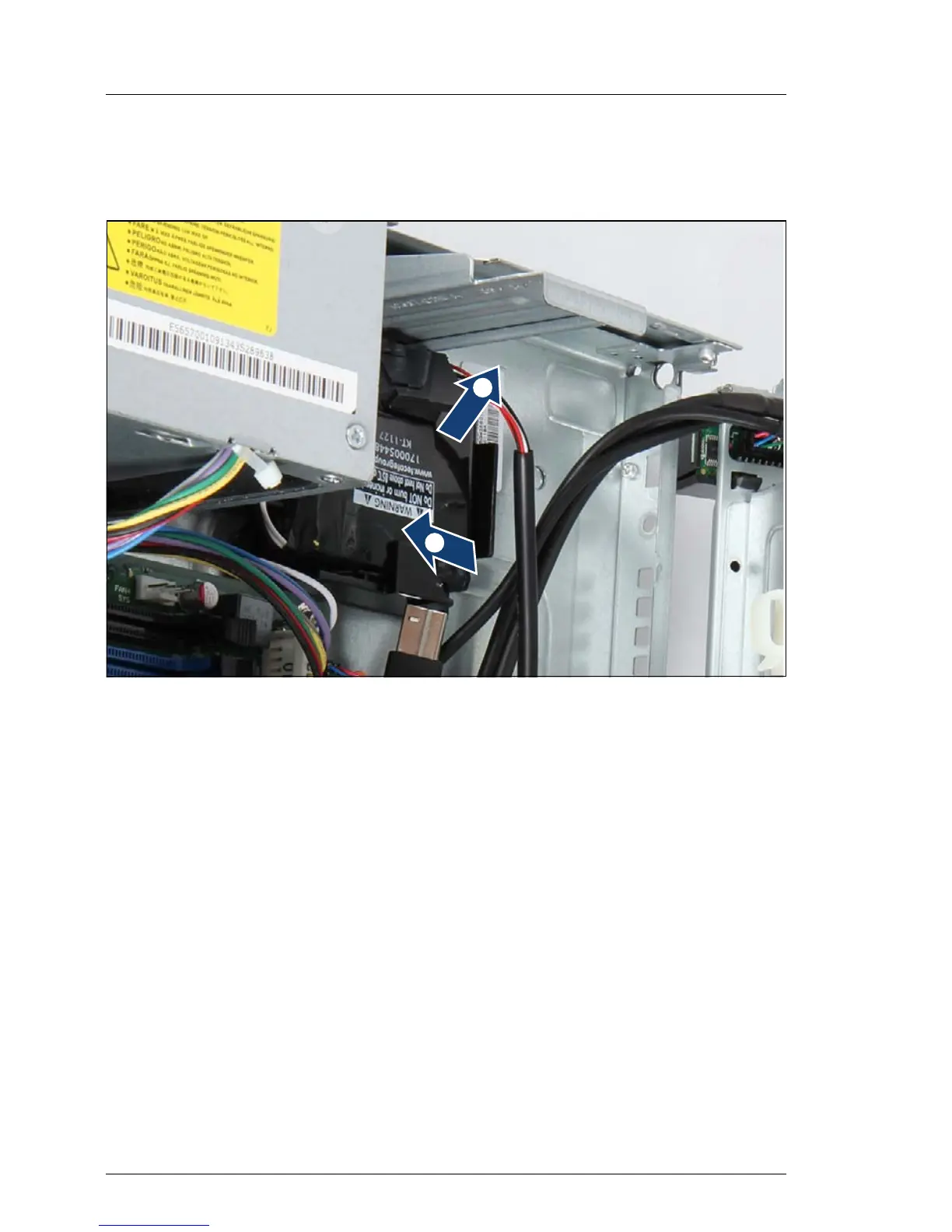

Figure 95: Installing the FBU holder
Ê Lift up the green locking handle on the FBU holder and slide the FBU holder
to the left as far as it will go (1).
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis (2).
9.3.2.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in section "Closing the front cage" on
page 62.
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê Reconnect the AC power cord to the power supply unit.
햲
햳
