Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 185
Expansion cards and backup units

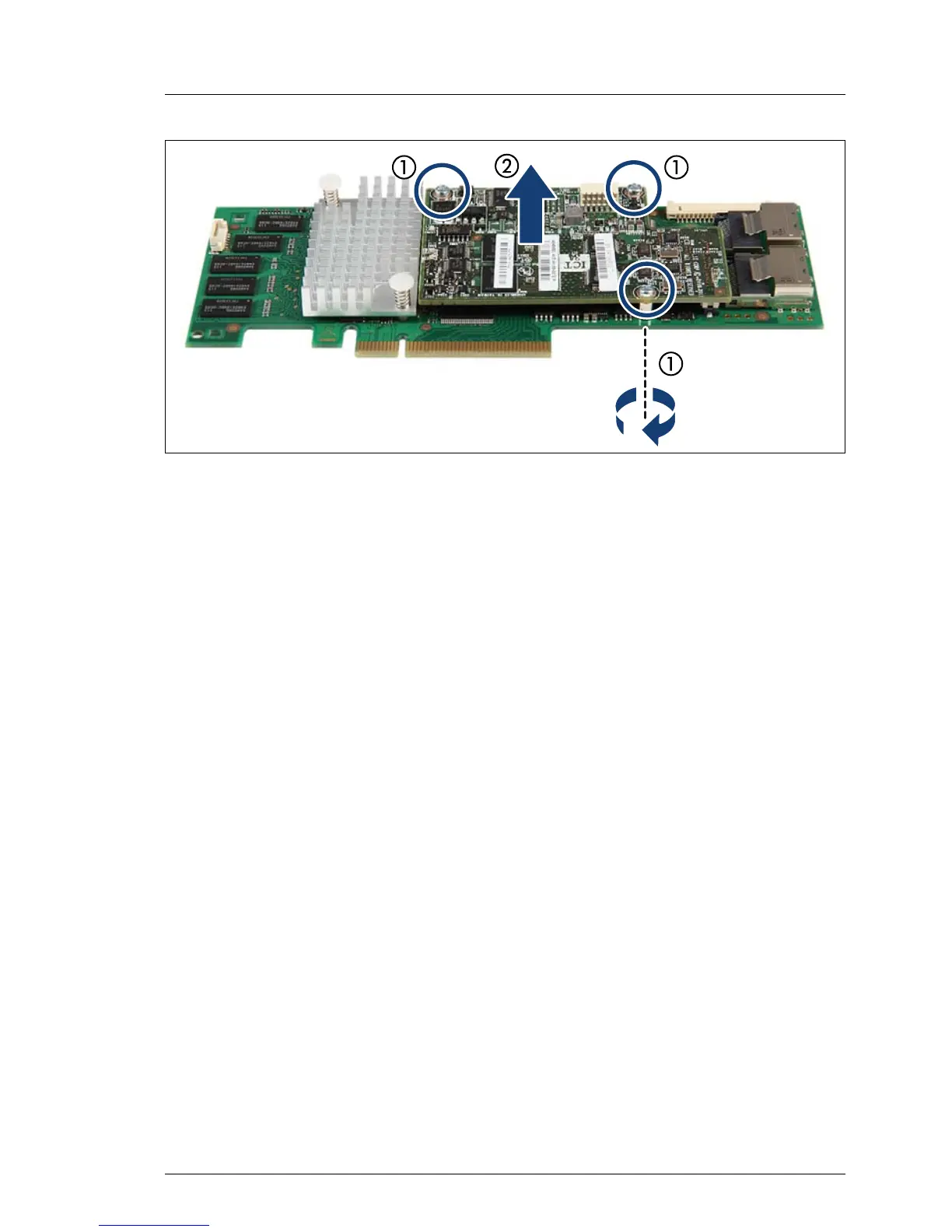

Figure 84: Removing the TFM
Ê Remove the three screws (1).
Ê Remove the TFM (2).
9.2.4.3 Installing the new TFM
Ê Install the new TFM as described in section "Installing TFM to the RAID
controller (if applicable)" on page 187.
Ê Connect the FBU adapter cable to the TFM as described in section
"Connecting the FBU adapter cable to the TFM" on page 190.
Ê Install the expansion card as described in section "Installing expansion
cards" on page 174.
9.2.4.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê If applicable, connect external cables to the expansion card.
Ê Reconnect the AC power cord to the power supply unit.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
