Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

130 Upgrade and Maintenance Manual TX1320 M1
Hard disk drives / solid state drives
7.3.2.2 Installing a 3.5-inch HDD module
Ê Detach and remove the Easyclick rails from the desired 3.5-inch HDD
installation bay.
Align the three pins on the Easyclick rails with the screw holes on the new
hard disk drive.

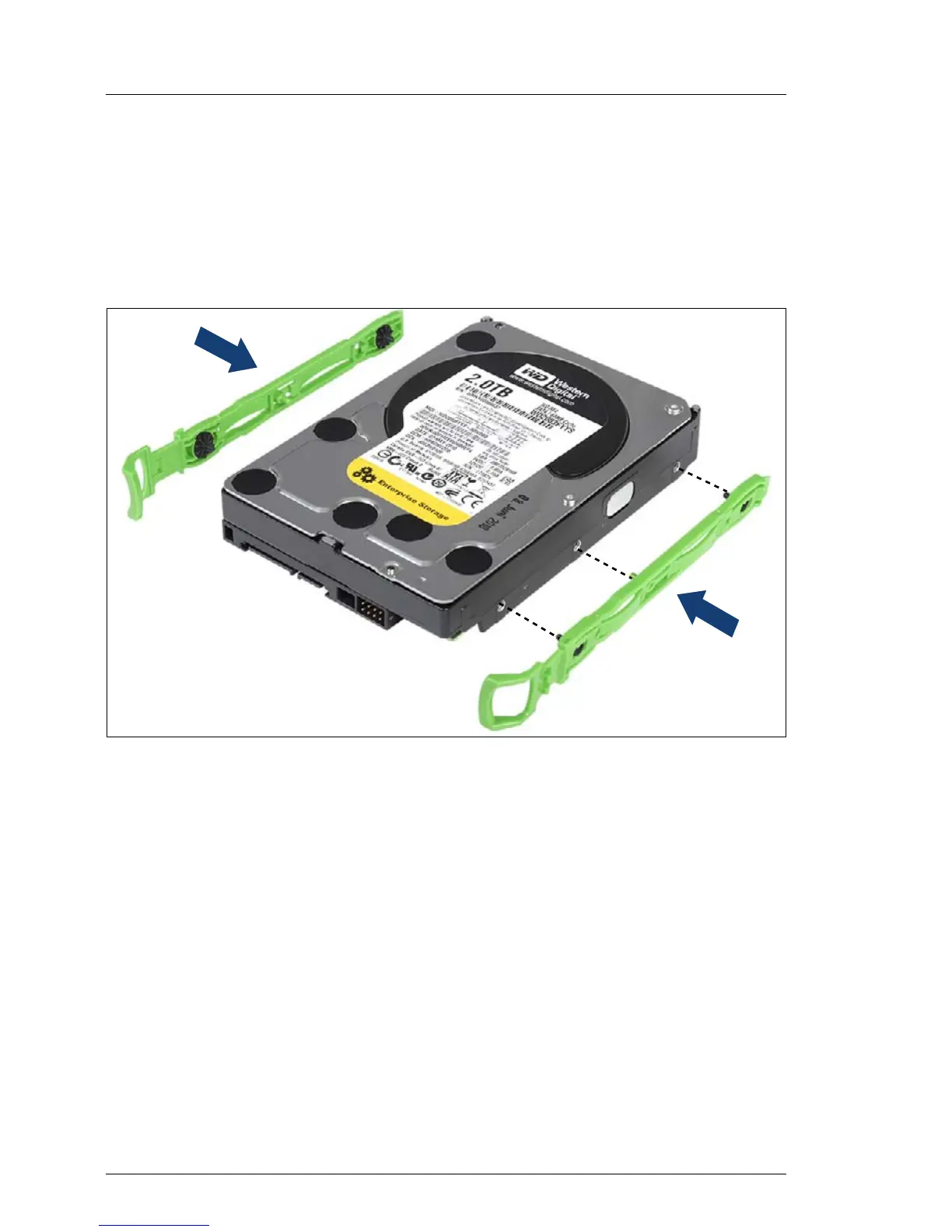

Figure 43: Installing the 3.5-inch HDD module locking lever
Ê Attach an Easyclick rail on each side of the new hard disk drive.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
