Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

266 Upgrade and Maintenance Manual TX1320 M1
Accessible drives
Ê Use the screw hole marked “1st”.

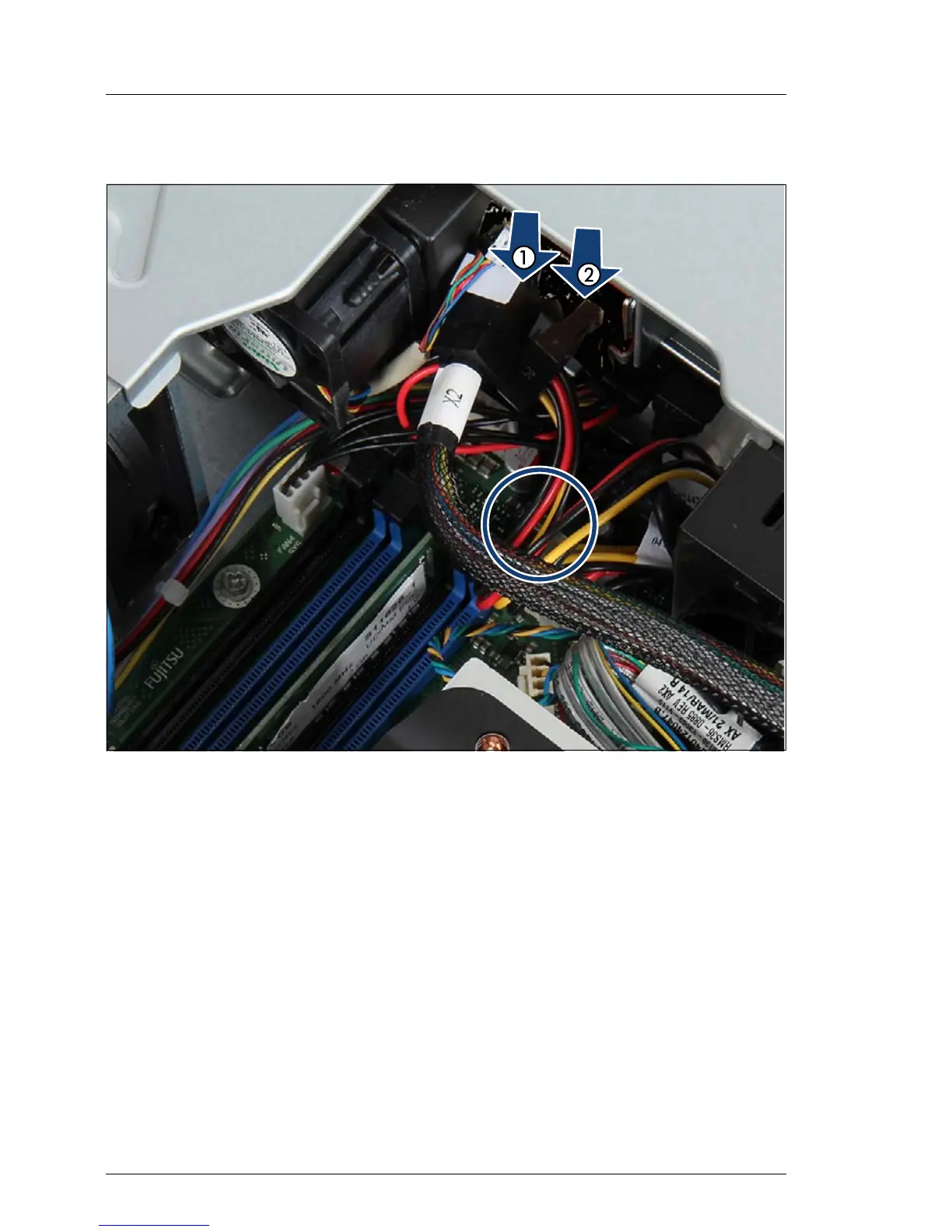

Figure 158: Installing the HDD expansion box
Ê Connect the SATA cable to the HDD expansion box connector (1).
Ê Connect the power connector P2 on SATA power cable T26139-Y4012-
V501 to the HDD expansion box (2).
Ê Run the power cable through the right cable clamp on the accessible drive
cage (see circle).
12.4.1.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in "Closing the front cage" on page 62.
Ê Close the server cover as described in section "Closing the server" on
page 64.
