Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

260 Upgrade and Maintenance Manual TX1320 M1
Accessible drives
12.3.2.3 Inserting the backup drive filler

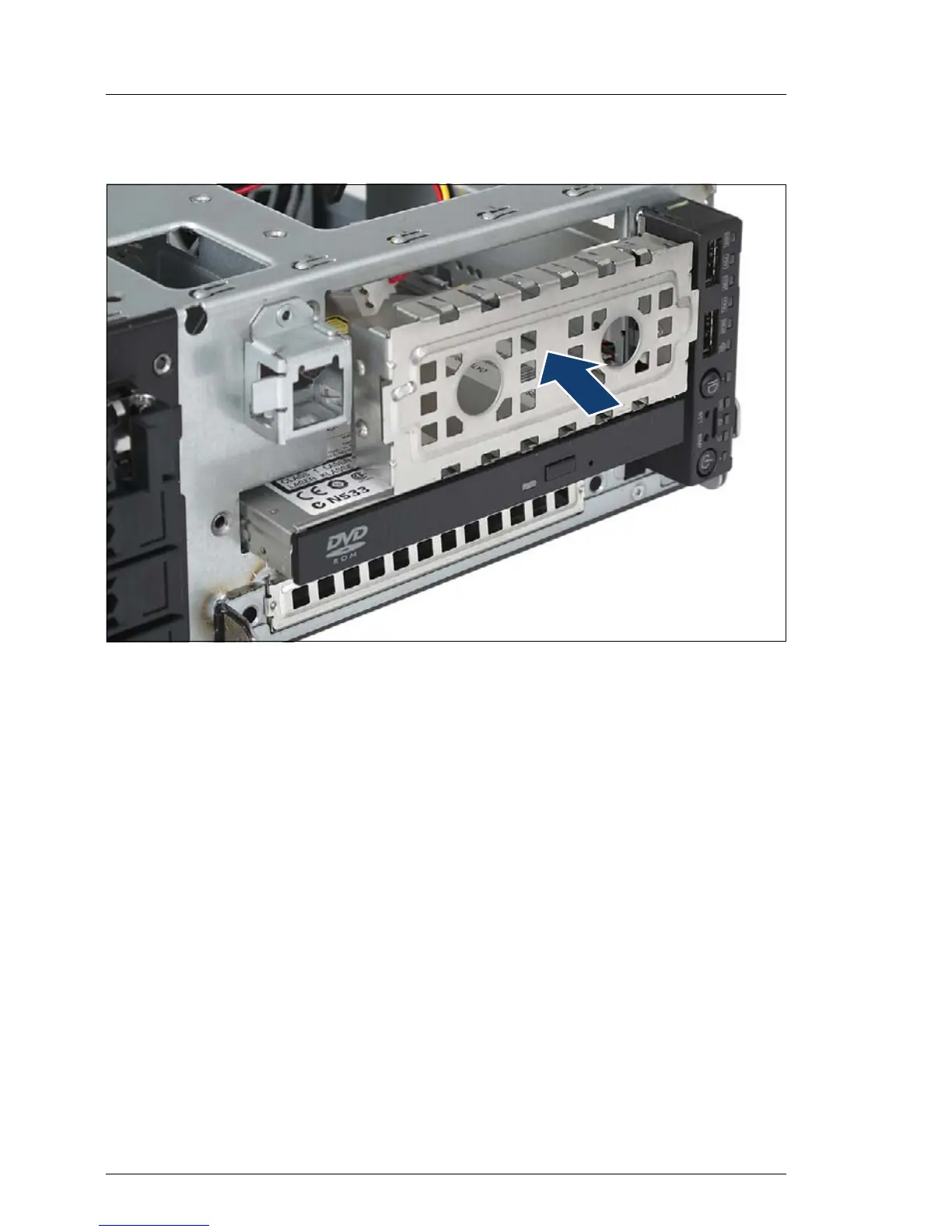

Figure 154: Inserting the backup drive filler cover
Ê Insert the backup drive filler cover.
12.3.2.4 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in "Closing the front cage" on page 62.
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê Reconnect the AC power cord to the power supply unit.
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task, re-enable BitLocker as described in section "Enabling
BitLocker functionality" on page 99.
Ê Verify if your backup software solution requires additional configuration after
installing, removing or replacing an accessible drive as described in section
"Verifying and configuring the backup software solution" on page 77.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
