Accessible drives
12.4.1.3 Installing the HDD expansion box

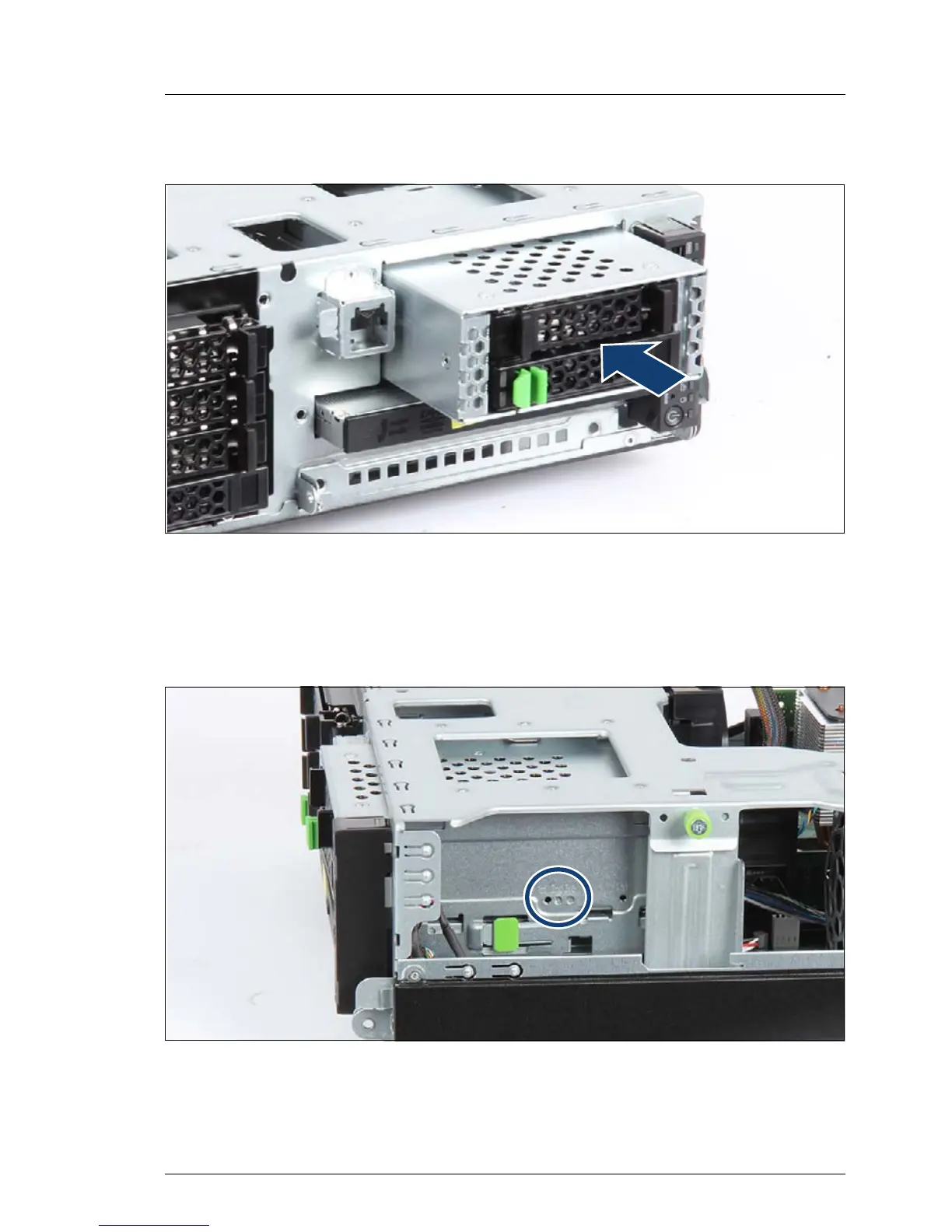

Figure 156: Installing the HDD expansion box
Ê Insert the backup drive into its installation bay.
Ê Carefully push back until the backup drive cover plate is flush with the front
panel.
Figure 157: Installing the HDD expansion box
Ê Secure the backup drive to the drive cage with one screw (M3 x 4.5 mm).
