176 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units
9.2.1.3 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Mounting expansion card slot brackets" on page 199.

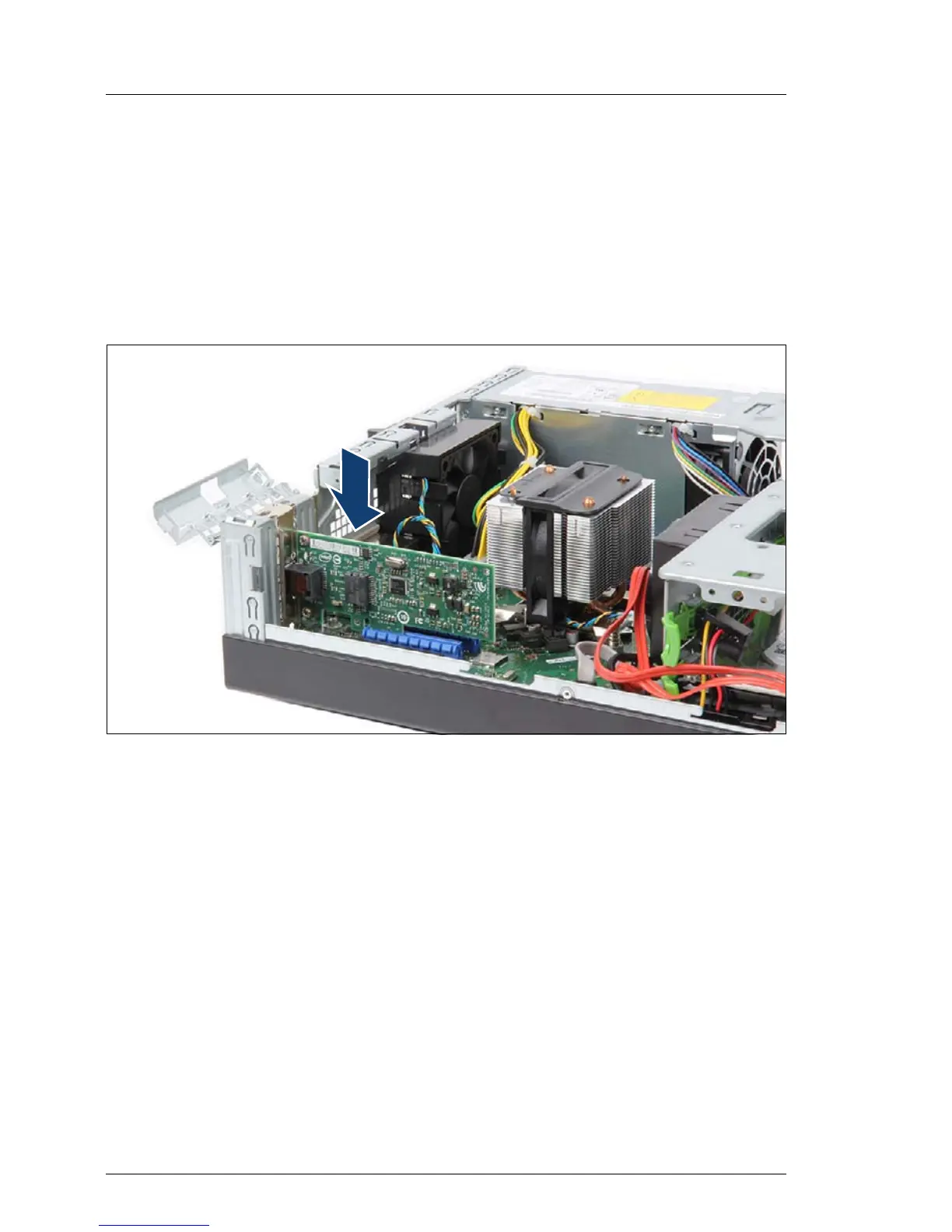

Figure 81: Installing the expansion card
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
I Slot 3 is the preferred slot for SAS RAID controllers.
Ê Fold down slot bracket clamp until it locks in place.
Ê If applicable, install SFP+ transceiver modules into the replacement
expansion card, as described in section "Installing SFP+ transceiver
modules" on page 207.
