Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

258 Upgrade and Maintenance Manual TX1320 M1
Accessible drives
12.3.2.2 Removing the backup drive

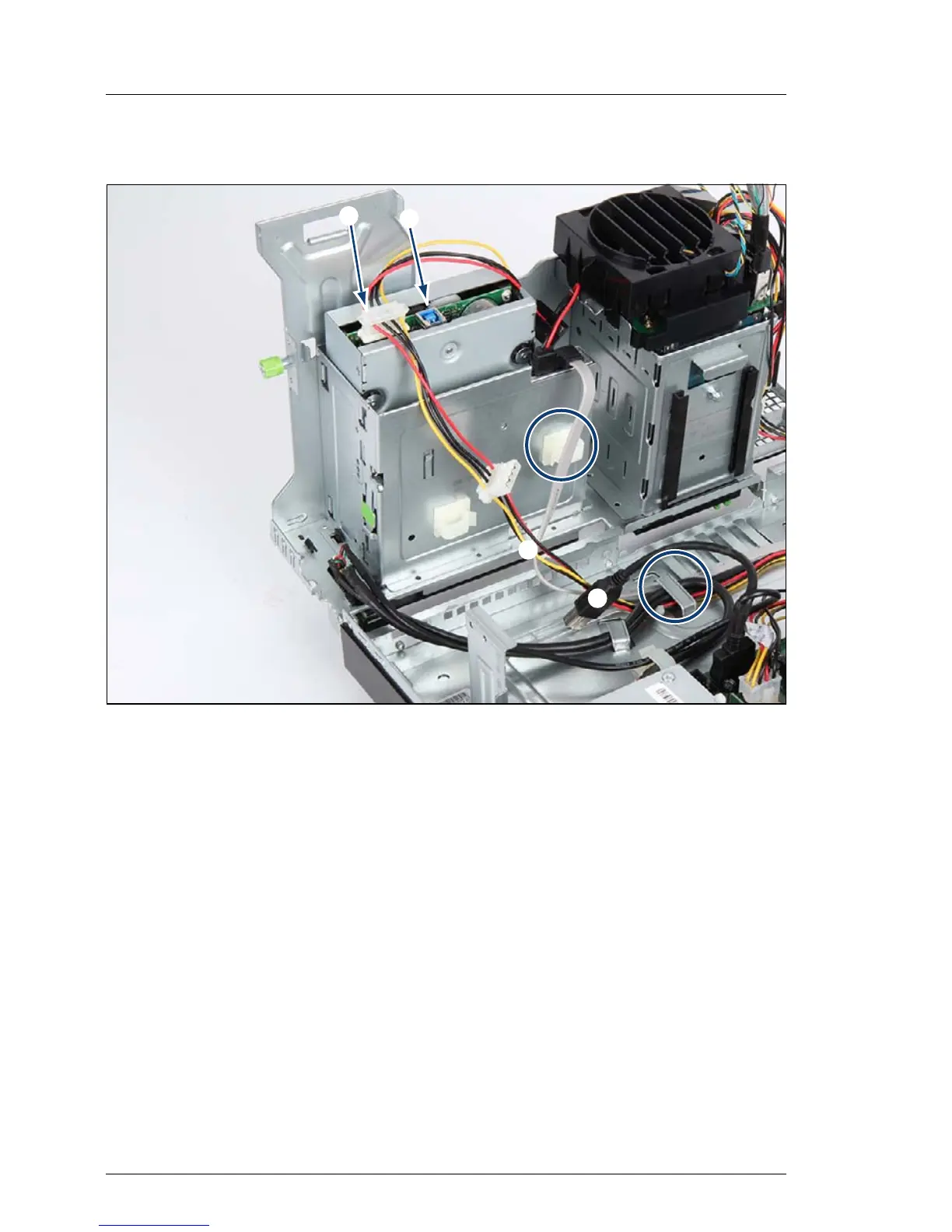

Figure 151: Disconnecting cables from the backup drive
Ê Disconnect all cables from the backup drive.
1 USB cable Y3973-V91 Type B connector (1)
2 SATA power cable T26139-Y4012-V501 connector P2 (2)
Ê Remove the SATA power cable from the cable clamps (see circle) and (see
circle).
햲
햳
햲
햳
