TX1320 M1
Upgrade and Maintenance Manual 49
Basic hardware procedures
4.1.3.2 Local diagnostic indicators on the system board

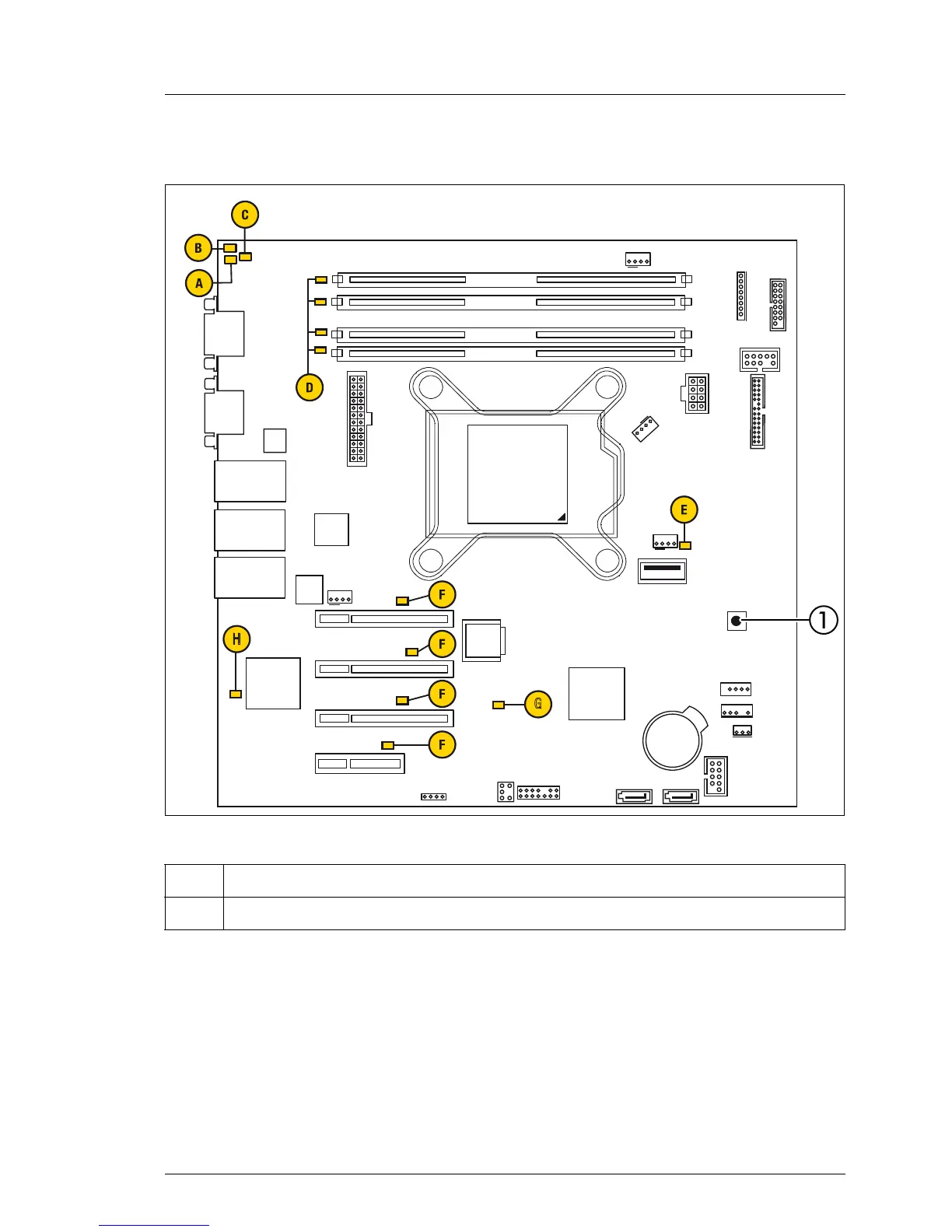

Figure 7: Onboard indicators and Indicate CSS button
Using the Indicate CSS button
Ê Shut down and power off the server.
Ê Disconnect the AC power cord from the system.
I It is mandatory to disconnect power cords in order to use the Indicate
CSS functionality.
No. Description
1 Indicate CSS button
External connectors
Slot 3 PCIe x8
MLC
SATA1-4
Battery
DIMM1B
Indicate
CSS
CPU
SATA6
SATA
POWER
PWR1
HDD ACTIVITY
Intrusion
TPM
Slot 2 PCIe x4
Management
LAN/
USB 9/10
Shared LAN/
USB 7/8
Standard LAN/
USB 5/6
USB Front
Slot 4 PCIe x8
Slot 1 PCIe x1
Intel
C224
USB1
DAT
USB1AUX
H
iRMC S4
FAN1
SYS
UFM
G
DIMM2B
DIMM1A
DIMM2A
COM1
VGA
SATA5
Intel
i210
Intel
i217
Jumper
PC2009
P30
Frontpanel
Service
LAN
Micro
SD
FAN2SYS
FAN4SYS
FAN3SYS
