TX1320 M1 Upgrade and Maintenance Manual 47
Basic hardware procedures
4.1.2.2 Customer Self Service (CSS) indicator

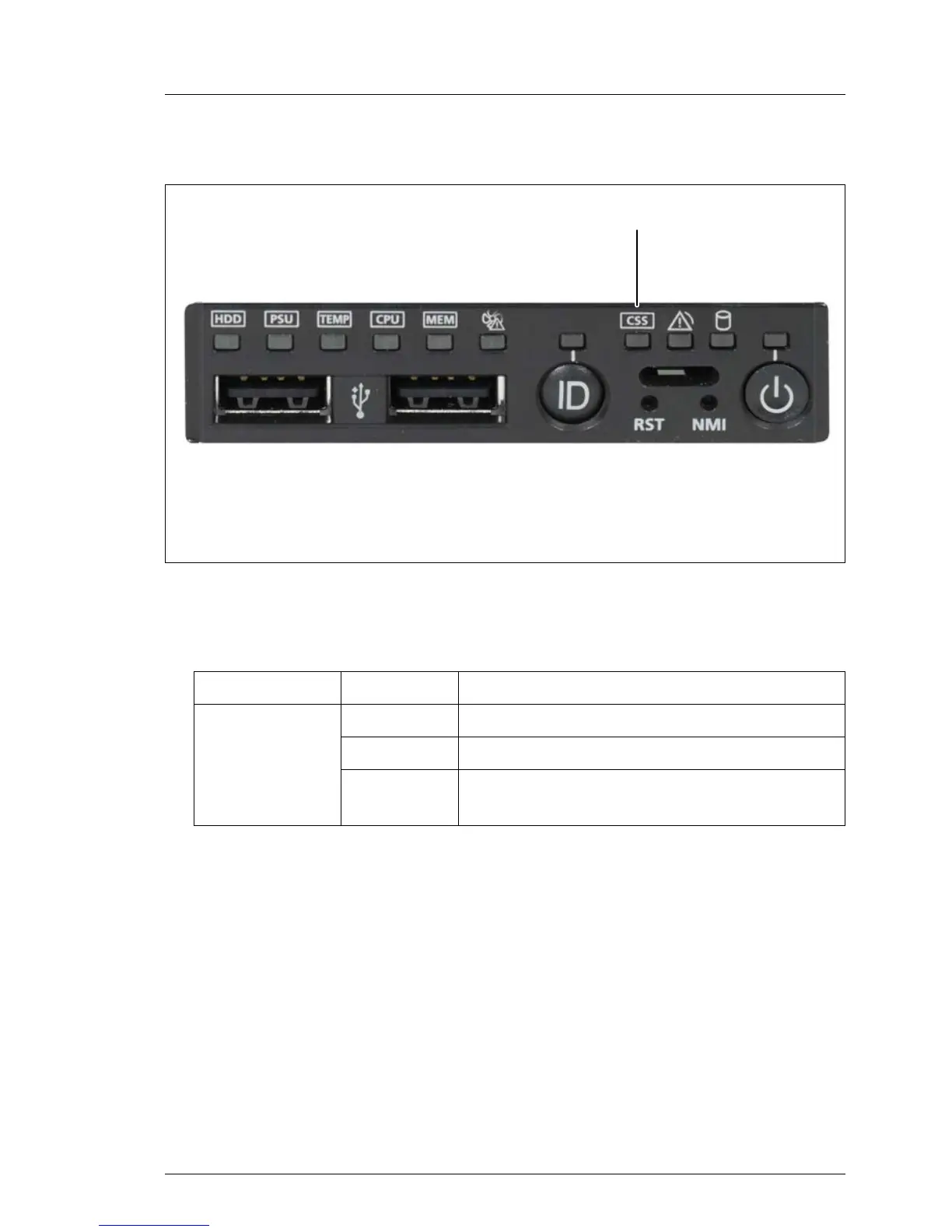

Figure 5: CSS indicator on front panel
Ê Check the CSS indicator (1) on the front panel or connector panel of the
server:
4.1.3 Locating the defective component
After determining the error class by the CSS or Global Error indicators (see
section 4.1.2 on page 45) local diagnostic indicators on the front panel, system
board and hot-plug PSU modules allow you to identify the defective component.
I For further information, refer to the "ServerView Suite Local Service
Concept (LSC)" manual available from the ServerView Suite DVD
supplied with your PRIMERGY server or online at
http://manuals.ts.fujitsu.com (EMEA market) or
http://jp.fujitsu.com/platform/server/primergy/manual/ (Japanese market).
Indicator Status Description
CSS indicator
off no critical event (CSS component)
yellow on prefailure detected (CSS component)
yellow
flashing
CSS component failure
0
