4.5.2 2.5-inch Hard disk drive version

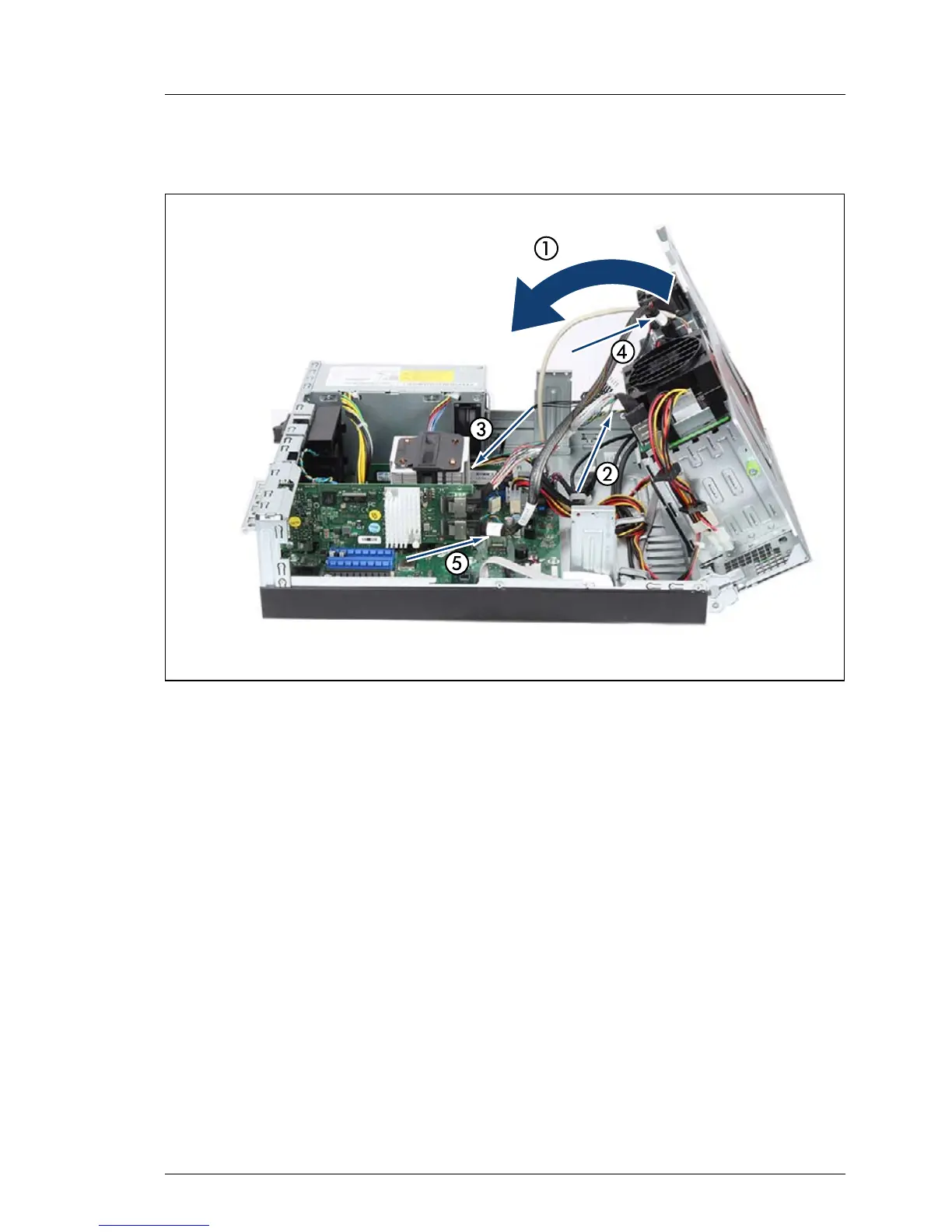

Figure 19: Closing the front cage
Ê Carefully close the front cage (1).
V CAUTION!
Ensure that none of the cables are strained or trapped!
Ê Tighten the two captive knurled thumb screws on the front cage.
Ê Connect the front fan cable (2) to system board connector FAN2 SYS (3).
Ê Connect the SATA cable (4) to system board connector SATA MLC1 (5).
