TX1320 M1
Upgrade and Maintenance Manual 113
Power supply
6.1.1.5 Reconnecting internal power cables

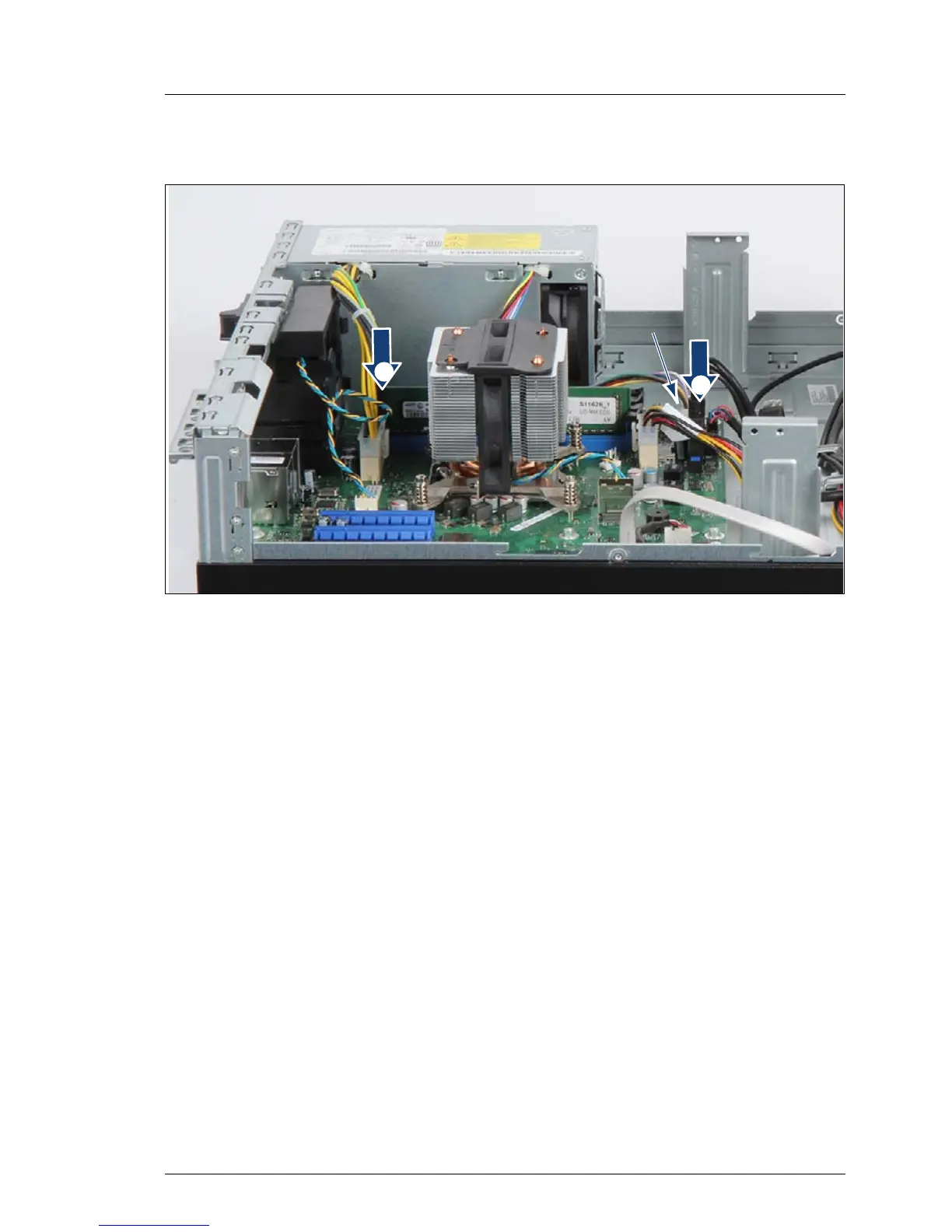

Figure 34: Connecting internal power cables
Ê Connect the PSU ATX power connector to system board connector
POWER1 (1).
Ê Connect the PSU power management connector to system board connector
PC2009 (2).
í–²
í–³
