Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

300 Upgrade and Maintenance Manual TX1320 M1
System board and components

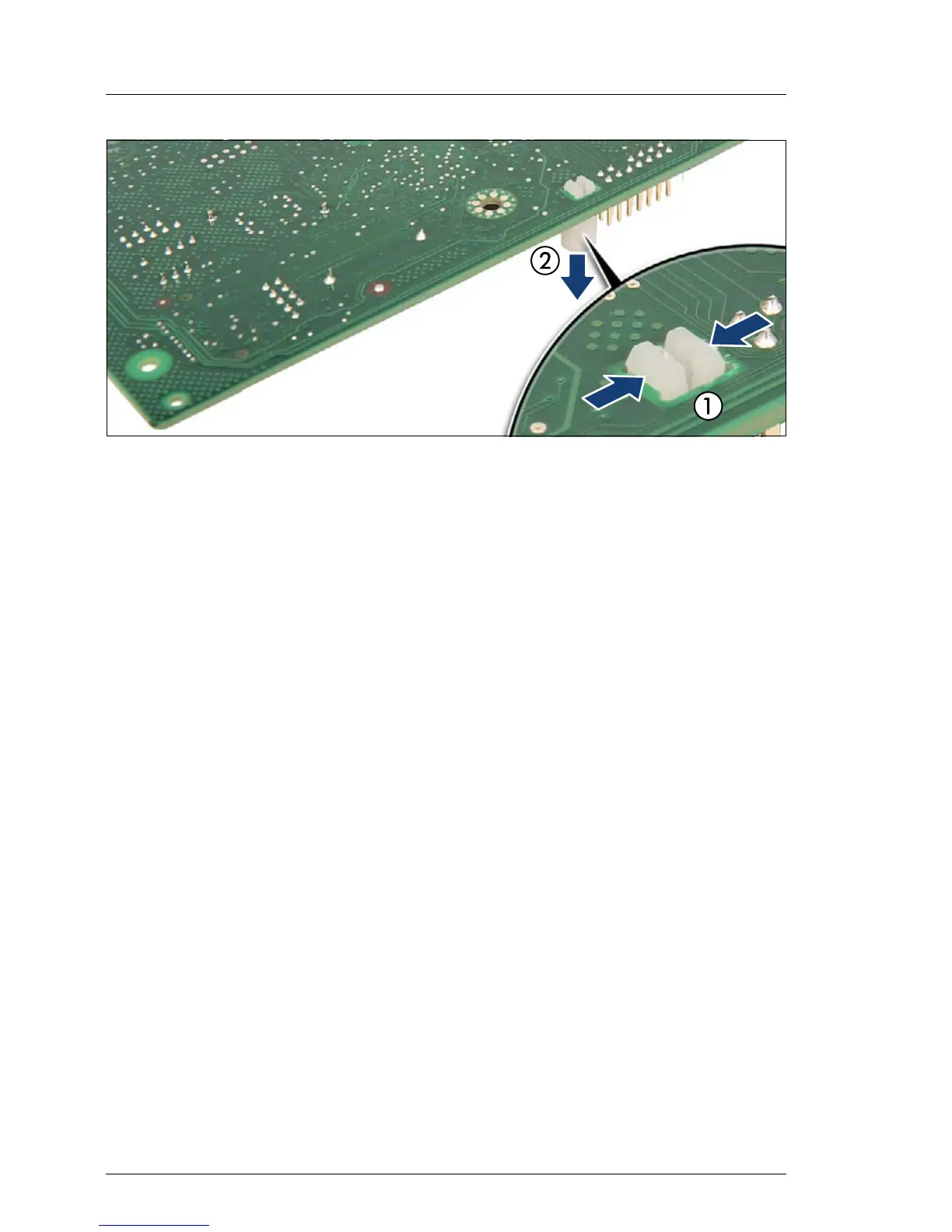

Figure 185: Removing the TPM spacer
Ê Using a small pair of combination pliers, press together the hooks on the
TPM spacer (1, see close-up) and remove it from the system board (2).
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
14.4.2.3 Concluding steps
Ê "Closing the server" on page 64
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 71

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
