TX1320 M1 Upgrade and Maintenance Manual 299
System board and components

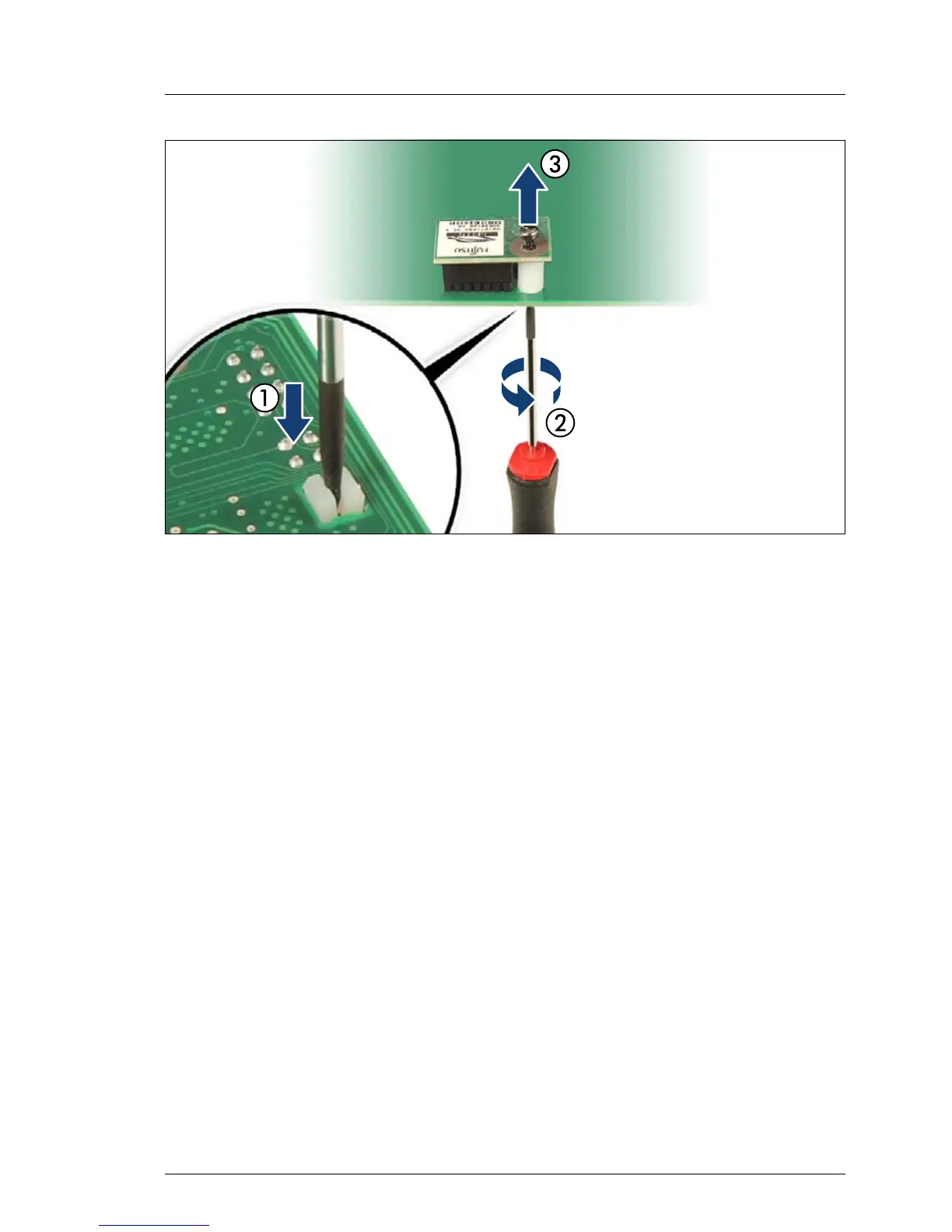

Figure 184: Removing the TPM screw
Ê Locate the slotted lower end of the TPM screw (1).
Ê Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (Japanese
market) (2).
V CAUTION!
Ensure to turn the screw clockwise in order to remove it!
Slowly and carefully increase the pressure on the screw until it begins
to turn. The effort when loosing the screw should be as low as
possible.
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê Remove the TPM screw (3).
Ê Remove the TPM on the upper side of the system board.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
