Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

172 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units
In this chapter
● "Installing expansion cards" on page 174
● "Removing expansion cards" on page 178
● "Replacing expansion cards" on page 181
● "Mounting expansion card slot brackets" on page 199
● "Handling SFP+ transceiver modules" on page 207
9.1 Basic procedure

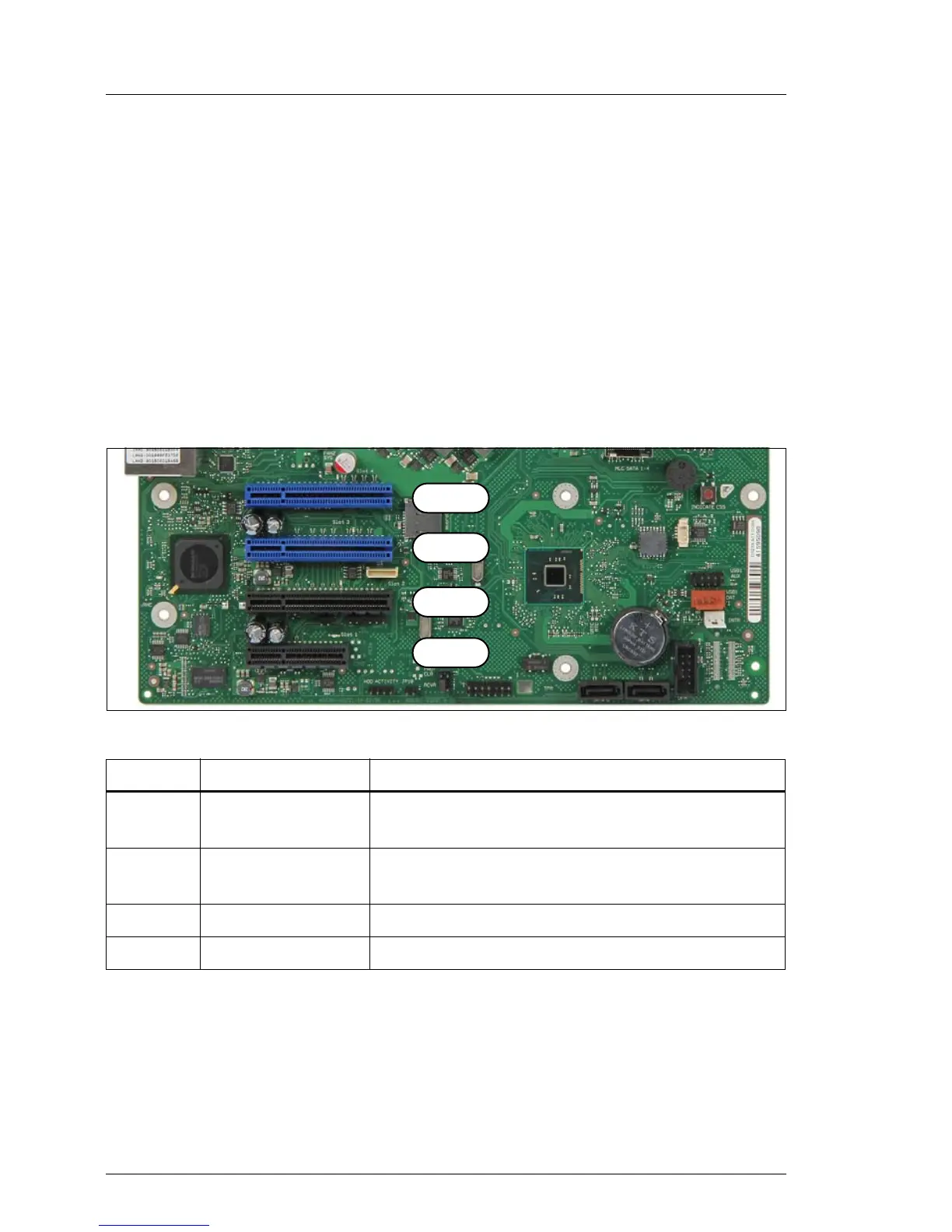

Figure 78: PCI slot overview
PCI slot Type Function
1
PCe Gen2 x1
(mechanical x4)
slot for optional PCI adapter board (connected
with riser card)
2
PCIe Gen 2 x4
(mechanical x8)
3 PCIe Gen3 x8
4 PCIe Gen3 x8 dedicated slot for boot controllers
slot 4
slot 3
slot 2
slot 1

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
