Fujitsu PRIMERGY TX1320 M1

110 Upgrade and Maintenance Manual TX1320 M1
Power supply
6.1.1.3 Removing the PSU

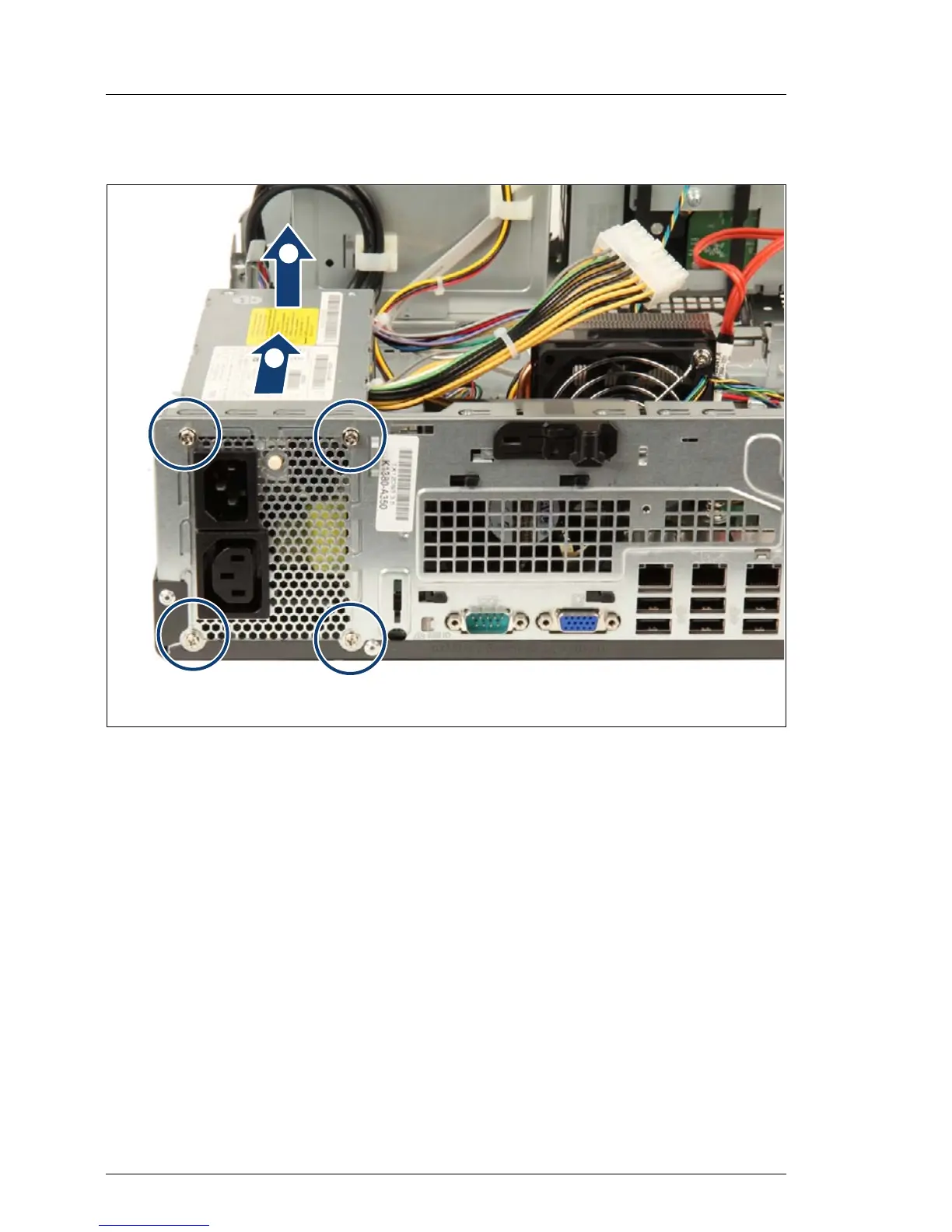

Figure 30: Removing the PSU
Ê Remove four screws from the PSU (see circles).
Ê Slide the defective PSU inward by 3 cm (1) to disengage the locking
mechanism.
Ê Lift the defective PSU out of the chassis (2).
/
