TX1320 M1 Upgrade and Maintenance Manual 275
Front panel
Ê Disable boot watchdog functionality as described in section "Disabling
SVOM boot watchdog functionality" on page 74.
Ê Locate the defective server as described in section "Locating the defective
server" on page 44.
Ê Shut down the server as described in section "Shutting down the server" on
page 52.
Ê Disconnect the AC power cord from the system.
Ê Remove the server cover as described in section "Opening the server" on
page 55.
Ê Open the front cage as described in section "Opening the front cage" on
page 60.
13.1.3 Removing the front panel module

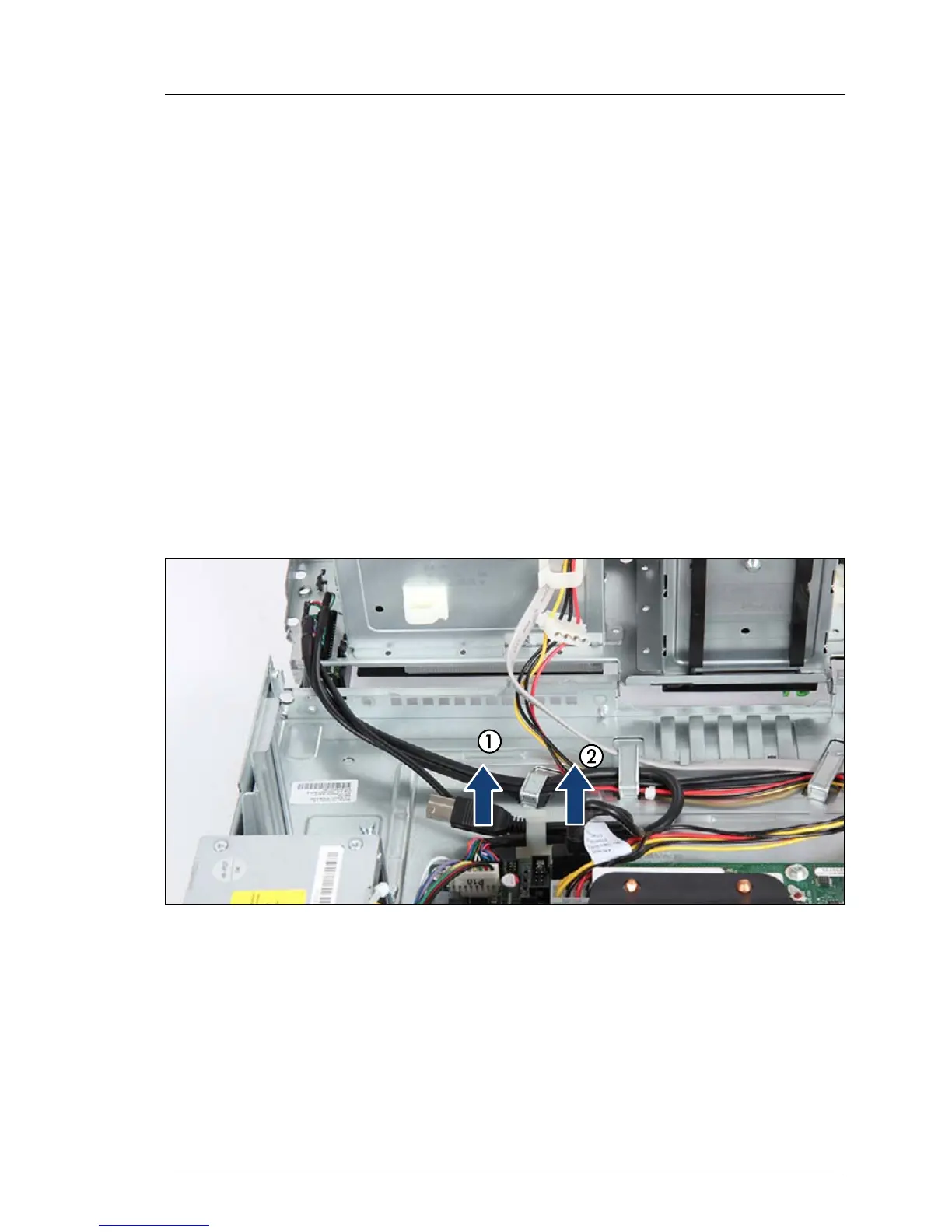

Figure 163: Disconnecting front panel cable
Ê Disconnect the front panel cable from the system board (1).
Ê Disconnect the USB cable from the system board (2).
