Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 175
Expansion cards and backup units
9.2.1.2 Removing a PCI slot bracket

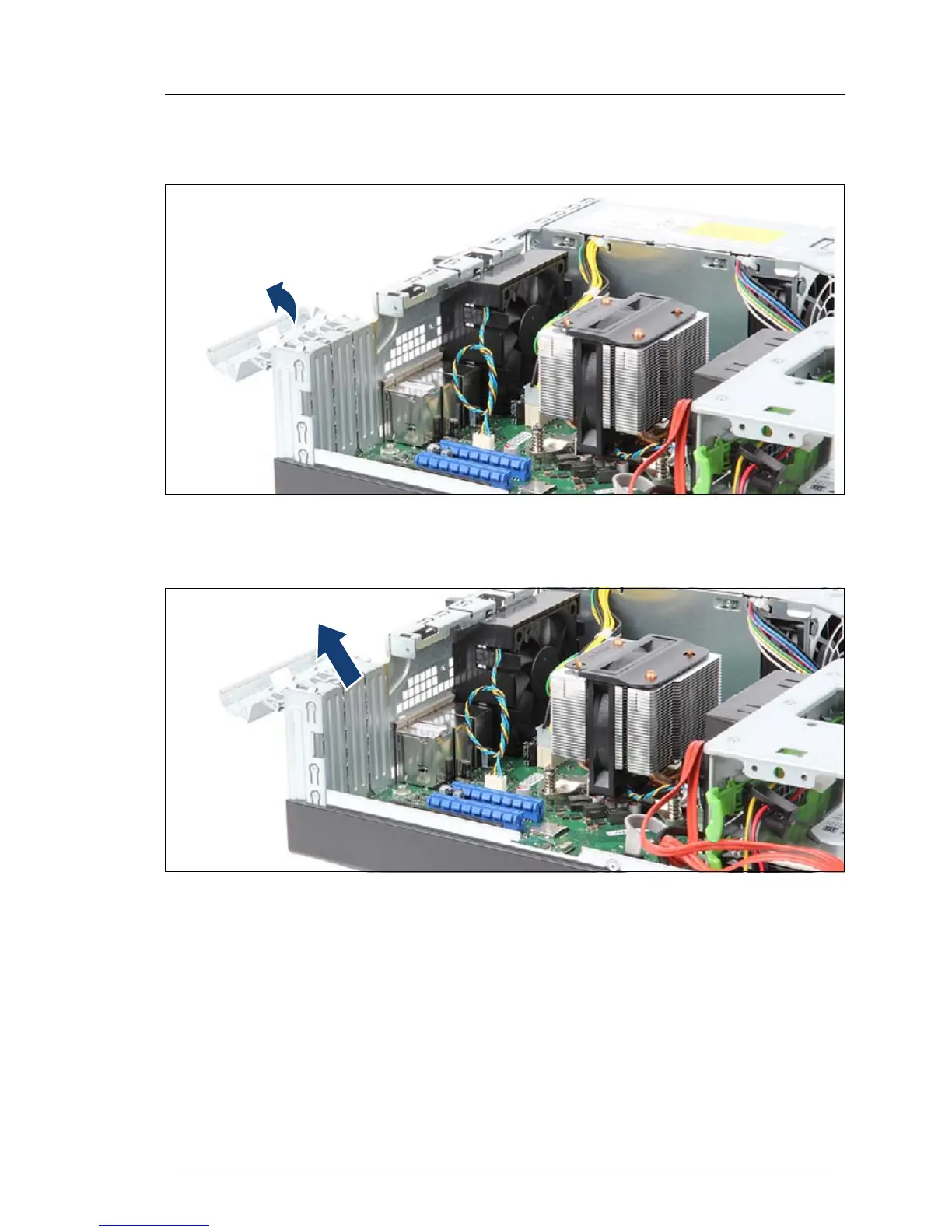

Figure 79: Opening the PCI slot bracket clamp
Ê Fold up the slot bracket clamp.
Figure 80: Removing the PCI slot bracket
Ê Remove the slot bracket.
V CAUTION!
Keep the slot bracket for further use. Always replace slot brackets
into unused PCI slot openings to comply with applicable EMC
regulations and satisfy cooling requirements.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
