Accessible drives
12.2.2.2 Removing an optical disk drive

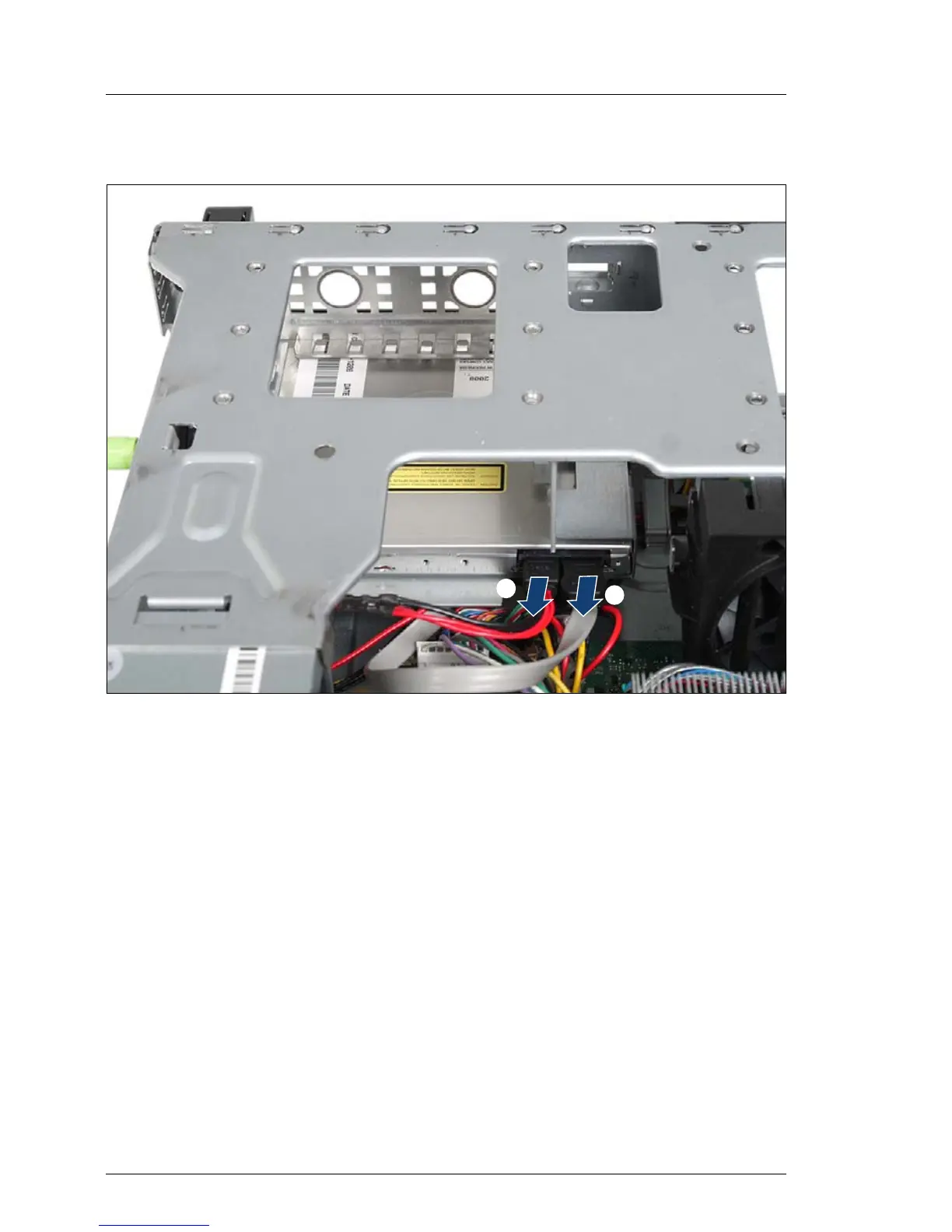

Figure 140: Disconnecting cables from the optical disk drive
Ê Disconnect all cables from the optical disk drive.
1 SATA cable Y3928-V205
2 Power cable Y4012-V501 connector P5
/
