Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

200 Upgrade and Maintenance Manual TX1320 M1
Expansion cards and backup units
9.4.1.1 General instructions
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
I Use the following slot bracket for the ModularRAID controllers based on
LSI MegaRAID:
– Full height bracket perforated (preferred)
– Full height bracket not-perforated (if full height bracket perforated is
not available)

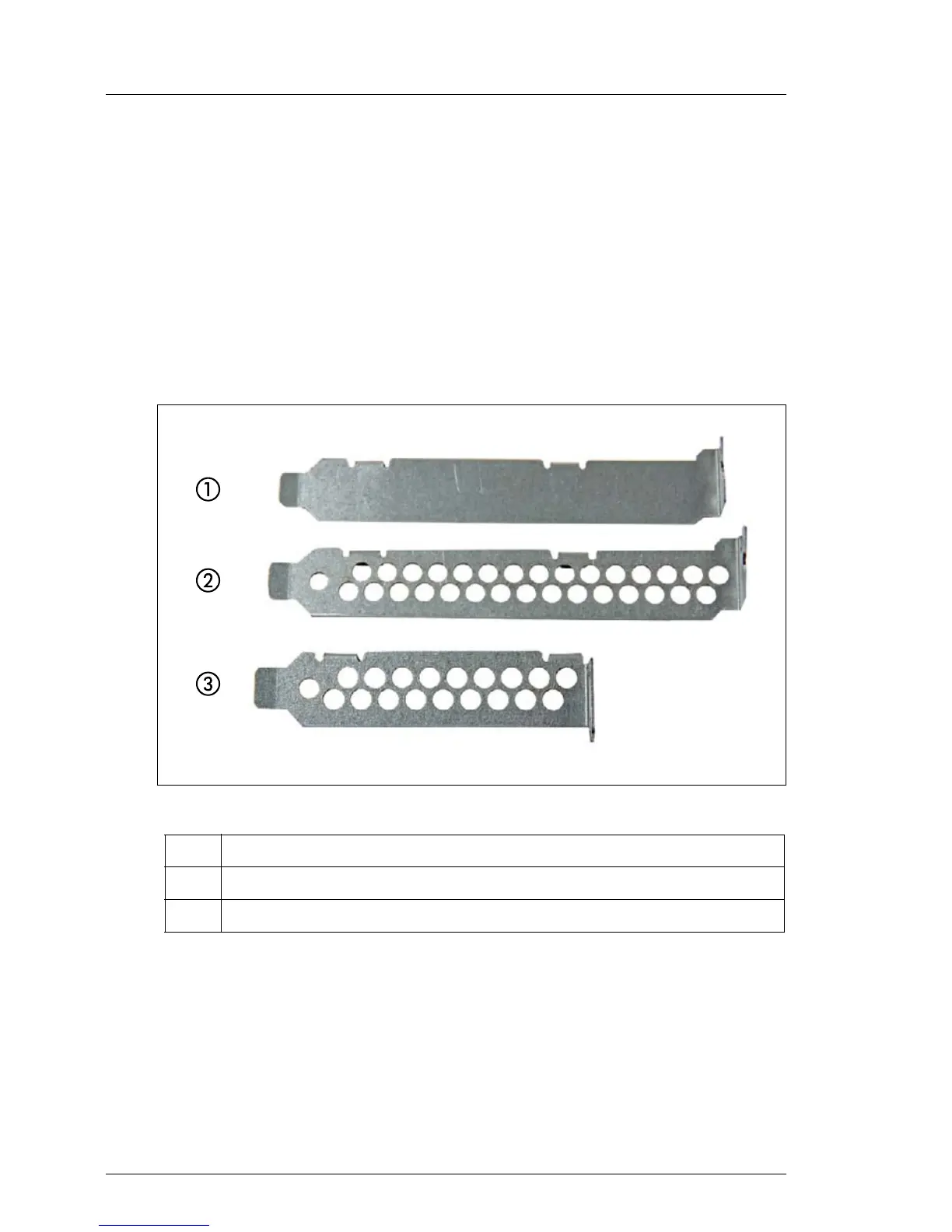

Figure 98: Perforated and non-perforated slot brackets
I For a more detailed description on how to install a slot bracket on a
controller, please refer to section "Network adapter D2735" on page 201.
The slot bracket is removed in the reverse order of the installation.
1 Full height bracket non-perforated
2 Full height bracket perforated
3 Low profile bracket perforated

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
