TX1320 M1 Upgrade and Maintenance Manual 233
Processors

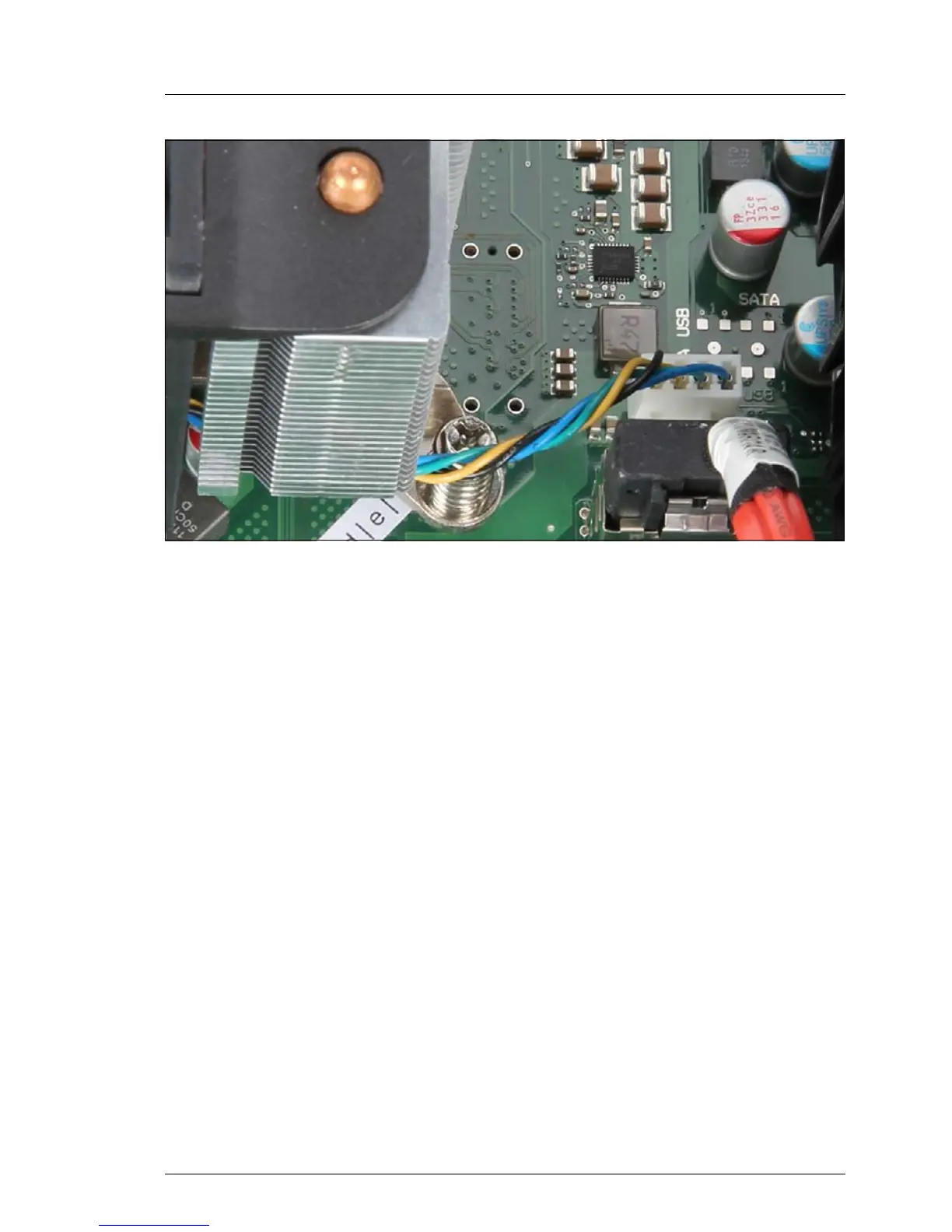

Figure 131: Installing the heat sink (B)
Ê Connect the CPU fan cable to the FAN1 SYS connector on the system
board.
11.2.7 Concluding steps
Ê "Installing the system fan module" on page 156
Ê "Closing the server" on page 64
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 71
Ê If applicable, "Updating or recovering the system board BIOS and iRMC" on
page 82
Ê "Enabling SVOM boot watchdog functionality" on page 92
Ê "Enabling BitLocker functionality" on page 99

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
