Expansion cards and backup units
9.3.1.3 Preparing the FBU

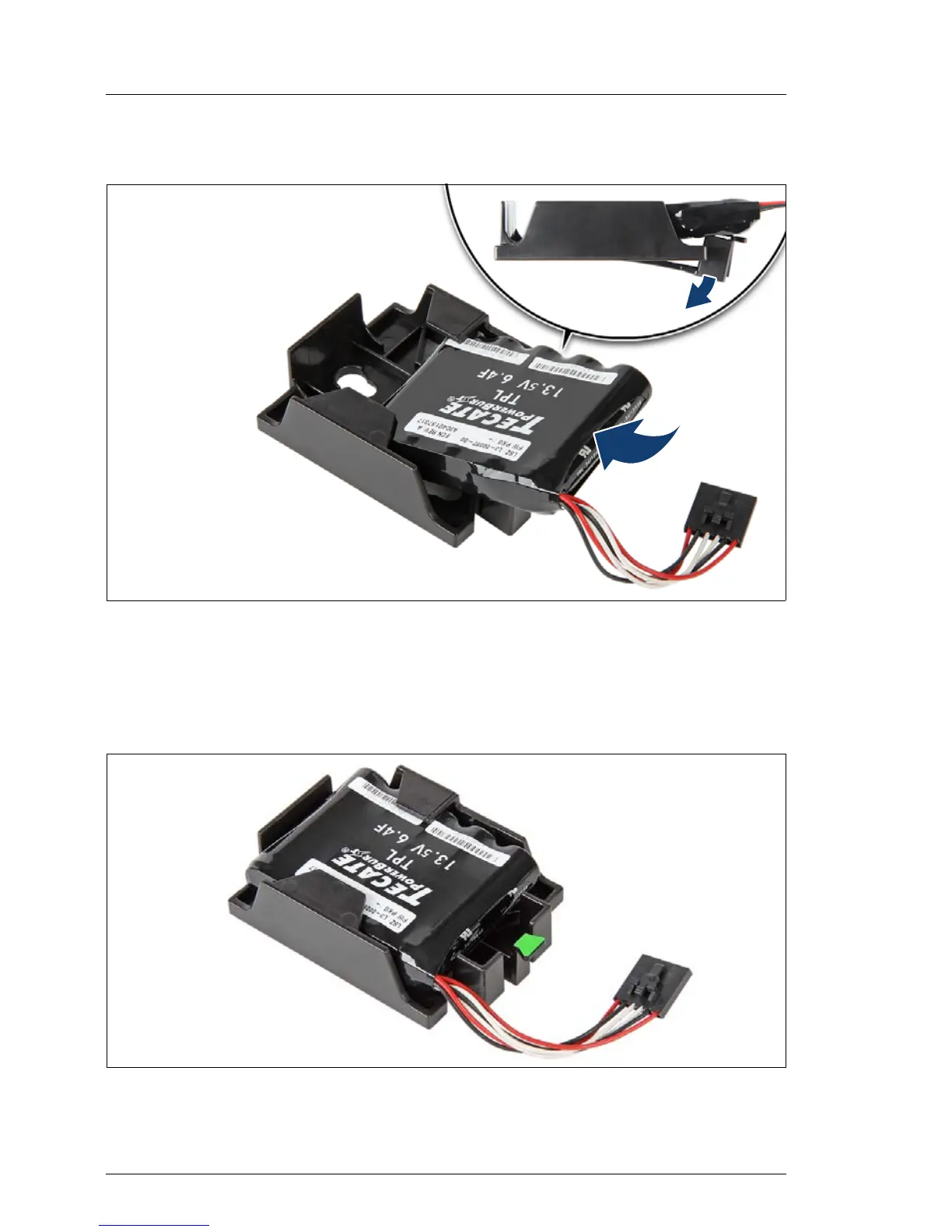

Figure 87: Installing the FBU in the FBU holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
Figure 88: Installing the FBU in the FBU holder (B)
Ê Ensure that the FBU is properly seated in the FBU holder as shown.
