4.3.2 Removing the drive cover

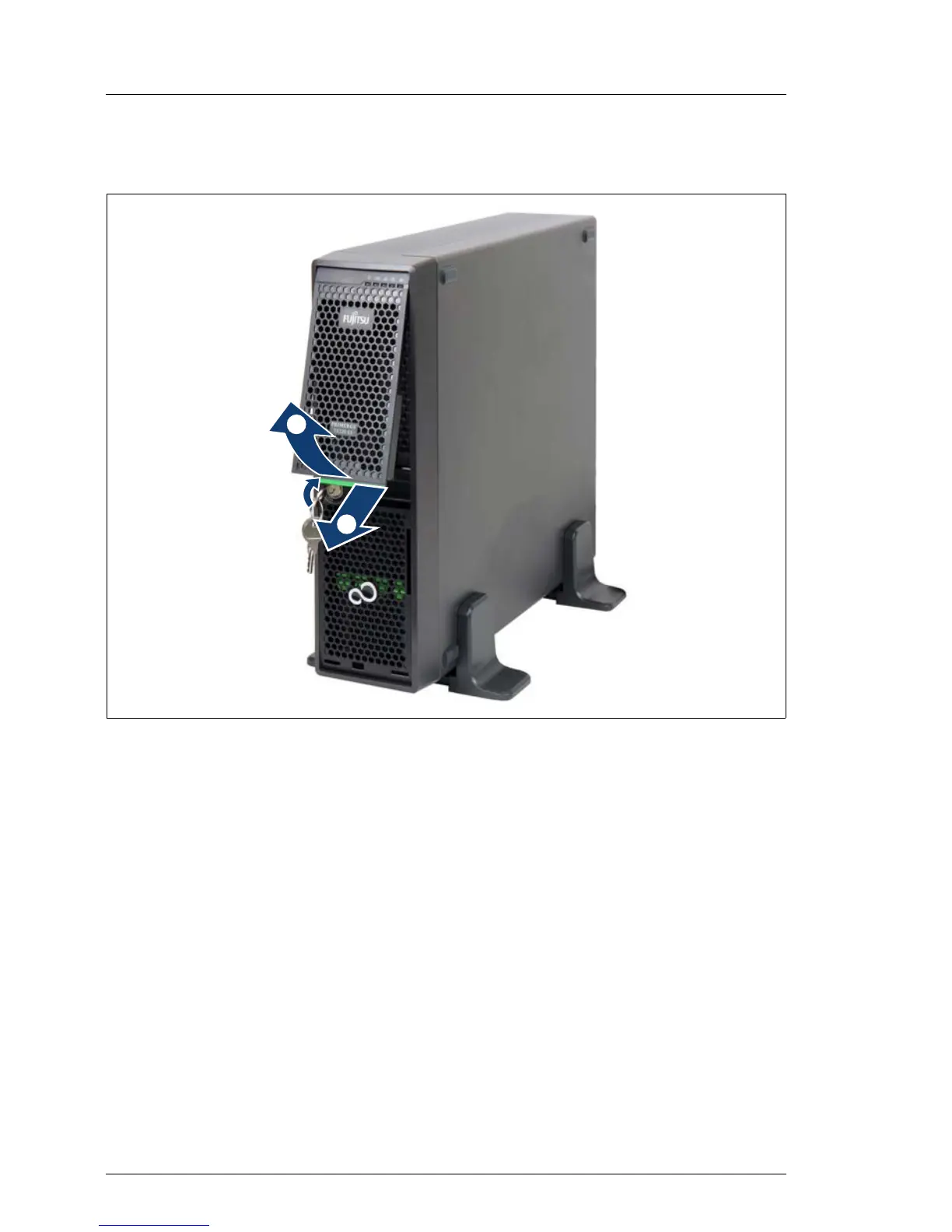

Figure 14: Opening the drive cover
Ê Turn the key clockwise (1).
I Depending on the setting of the green hook in the drive cover, you
can open the drive cover without turning the key or only with turning
the key (For further information, please refer to the Operating Manual
section "opening the drive cover").
Ê Open the drive cover carefully in the direction of the arrow (2) until the cover
is released.
V CAUTION!
Do not pull too hard to avoid damage to the locking mechanism.
Ê Remove the drive cover in the direction of the arrow (3).
