TX1320 M1
Upgrade and Maintenance Manual 57
Basic hardware procedures

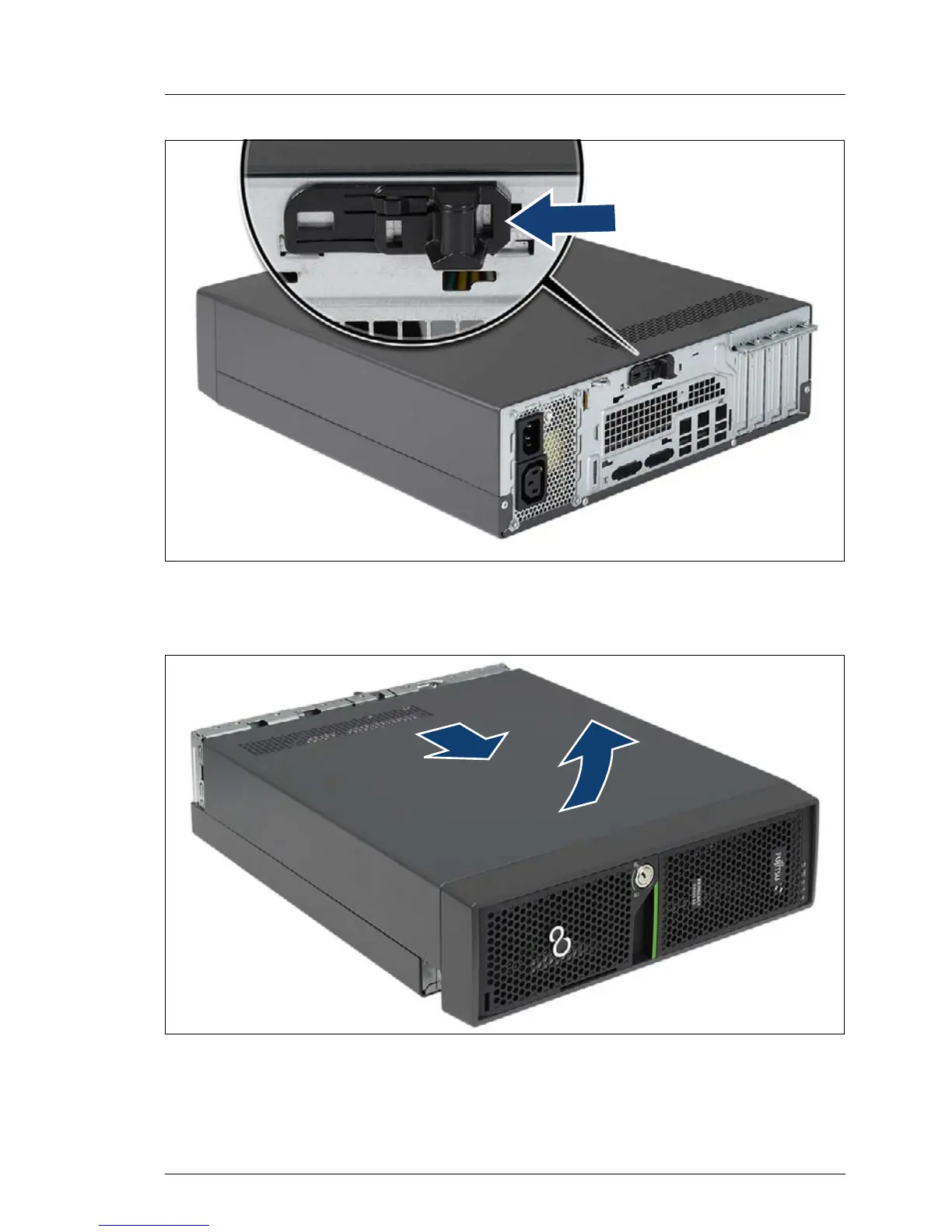

Figure 12: Unlocking the locking bar
Ê Slide the locking bar to the left until it rests in place.
Figure 13: Removing the server cover
Ê Push the server cover to the front.
Ê Remove the server cover.
