Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 153
System fan and HDD fan
8.1.2 Removing the system fan module

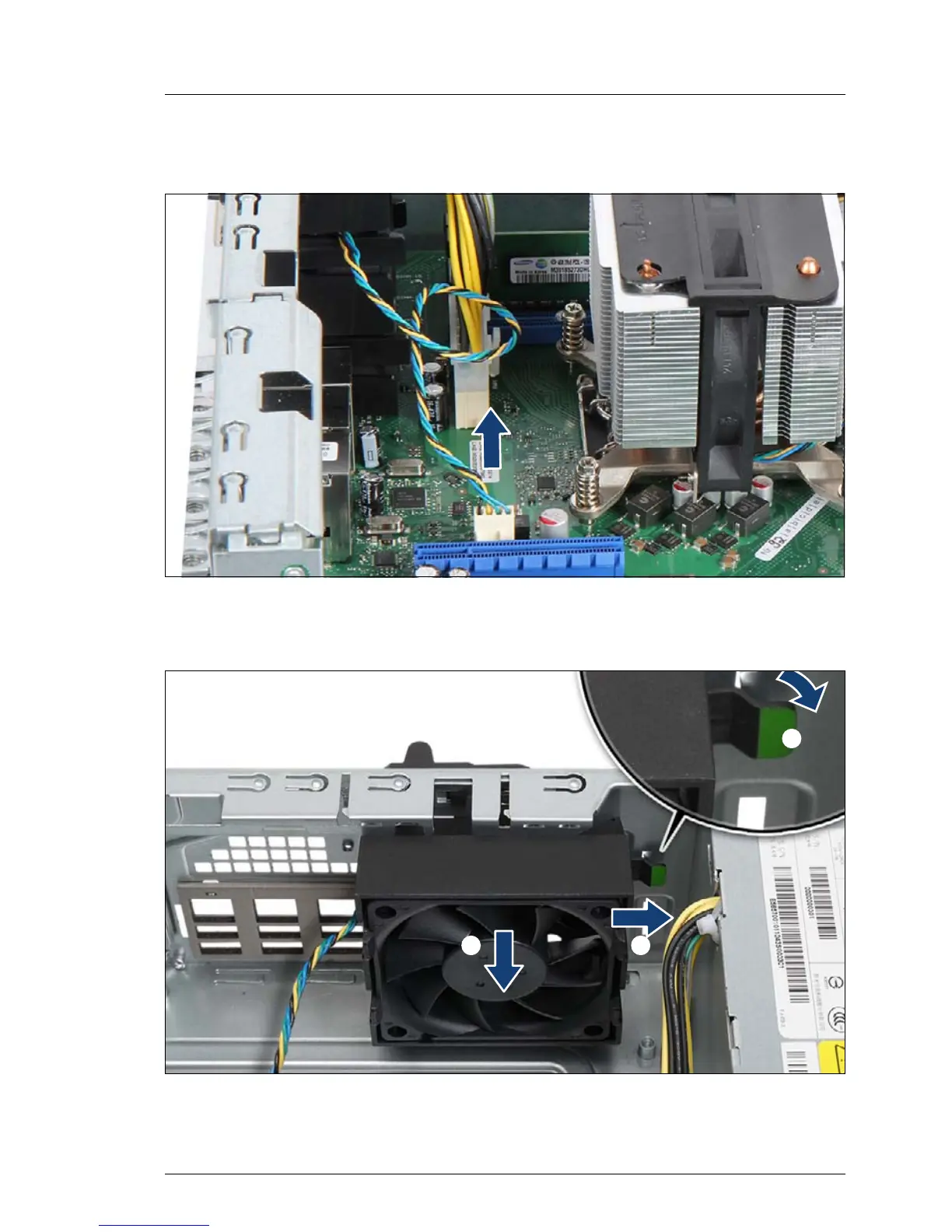

Figure 60: Disconnecting the cable of the system fan module
Ê Disconnect the fan cable from system board connector FAN1 SYS.
Figure 61: Removing the system fan module
Ê Pull the locking lever (1).
/
01

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
