Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 119
Hard disk drives / solid state drives
7.2.2.2 Removing a 2.5-inch HDD / SSD dummy module

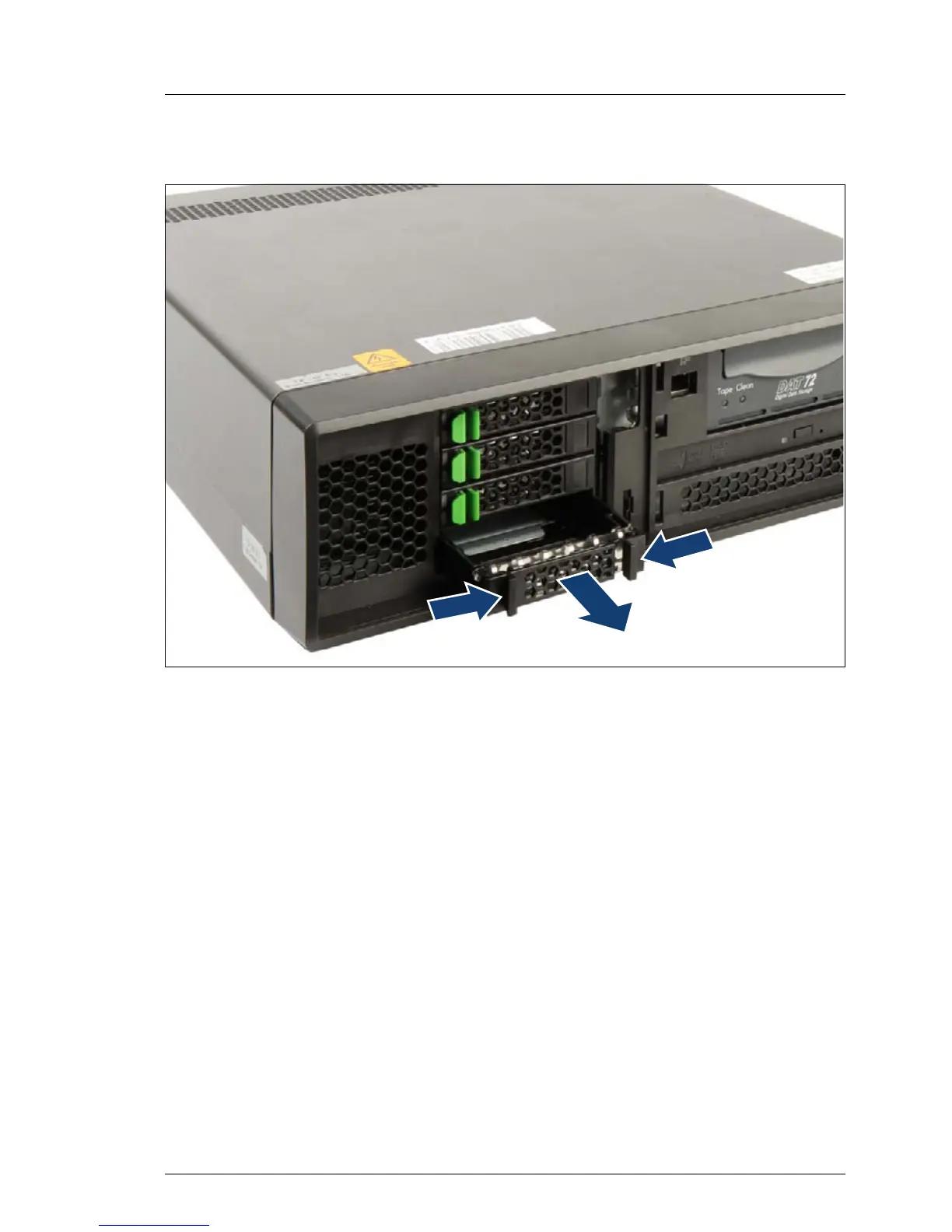

Figure 36: Removing a 2.5-inch HDD / SSD dummy module
I Dummy modules have been installed into unused HDD / SSD bays.
Before installing an additional HDD / SSD, the dummy module needs to
be removed from the desired drive bay.
Ê Press in on the locking clips of the dummy module to disengage the locking
mechanism.
Ê While keeping the locking clip pressed, pull the dummy module out of its bay.
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD / SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
