TX1320 M1
Upgrade and Maintenance Manual 335
Appendix
16.3.2 Connectors and indicators on the front panel
16.3.2.1 Front panel controls and indicators

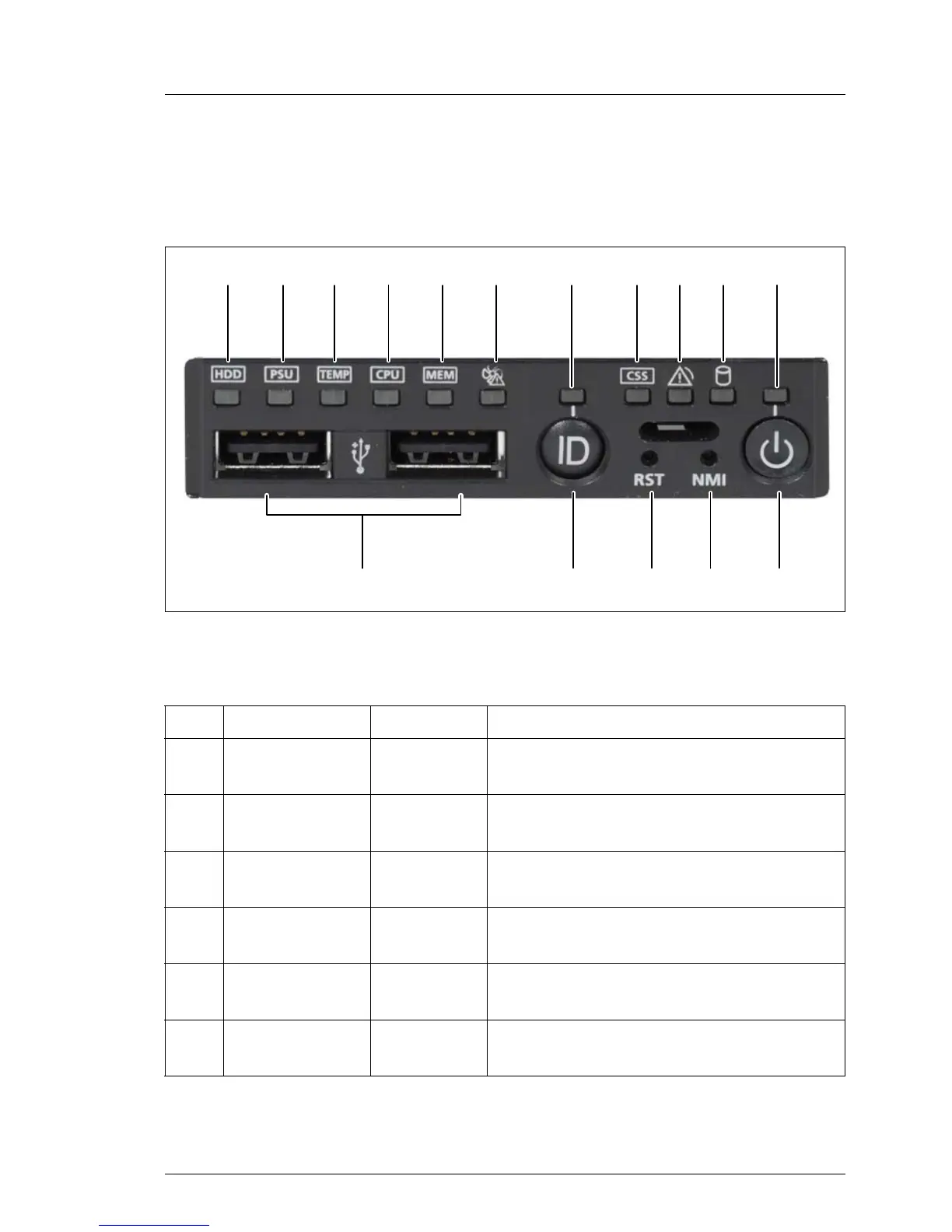

Figure 209: Front side (indicators and controls)
Local diagnostic indicators
Pos. Indicator Status Description
1
HDD error
indicator
yellow on
HDD / SSD, SAS / SATA backplane or
RAID controller failure detected
2
PSU error
indicator
orange on PSU module failure detected
3
Temperature
error indicator
orange on
Operating temperature levels above
permitted limits
4
CPU error
indicator
orange on CPU pre-failure event detected
5
Memory error
indicator
orange on Memory module failure detected
6
Fan error
indicator
orange on Fan pre-failure or failure event detected
