TX1320 M1 Upgrade and Maintenance Manual 125
Hard disk drives / solid state drives
7.2.3.3 Installing a 2.5-inch HDD / SSD dummy module
V CAUTION!
If the removed HDD / SSD module is not replaced immediately, always
replace a dummy module into the unused HDD / SSD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

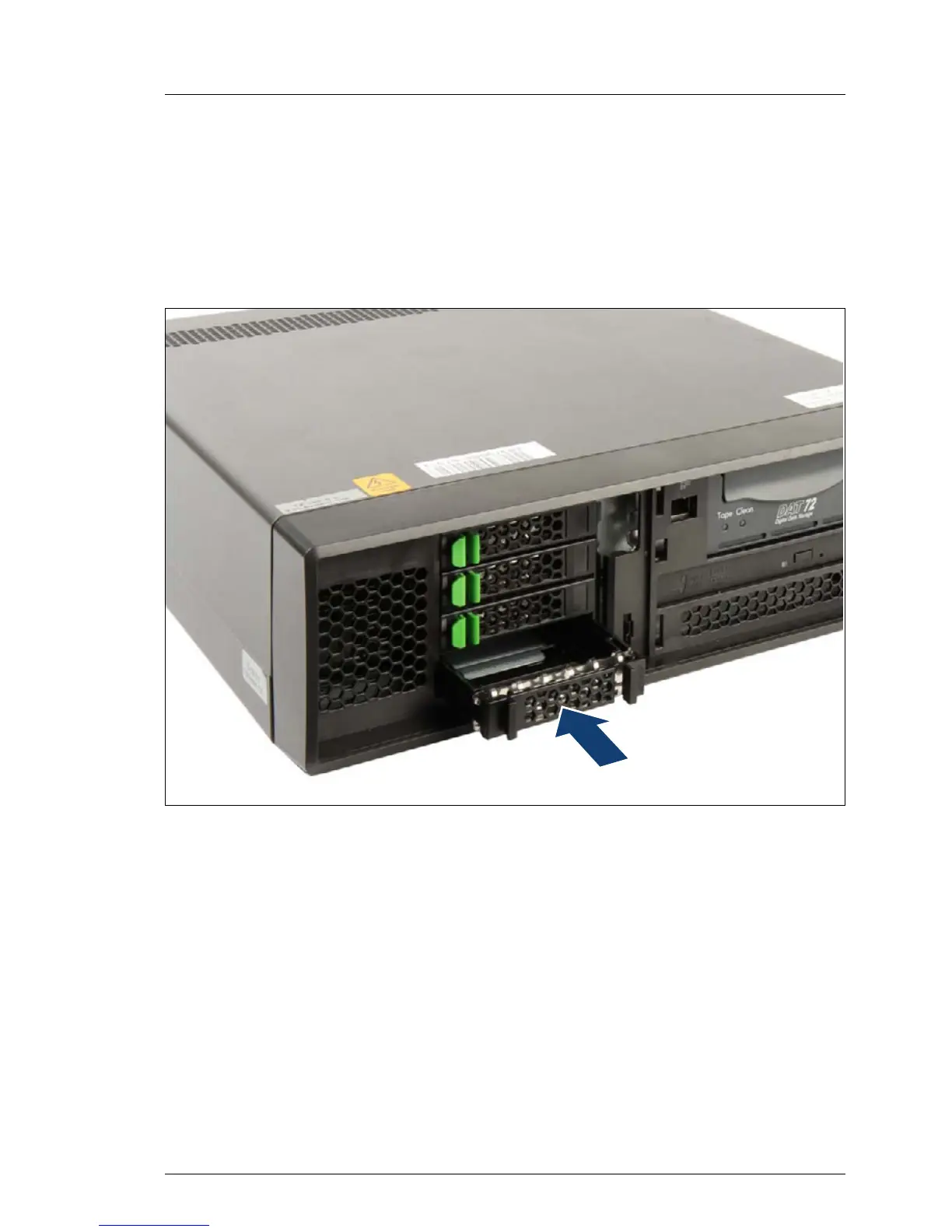

Figure 41: Installing a 2.5-inch HDD / SSD dummy module
Ê Insert the HDD dummy module into the drive bay and push it backward until
locks in place.
7.2.3.4 Concluding steps
Perform the following procedures to complete the task:
Ê Install the hard disk drive cover as described in section "Mounting the drive
cover" on page 65.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
