9.3.1.2 Installing TFM to the RAID controller (if applicable)

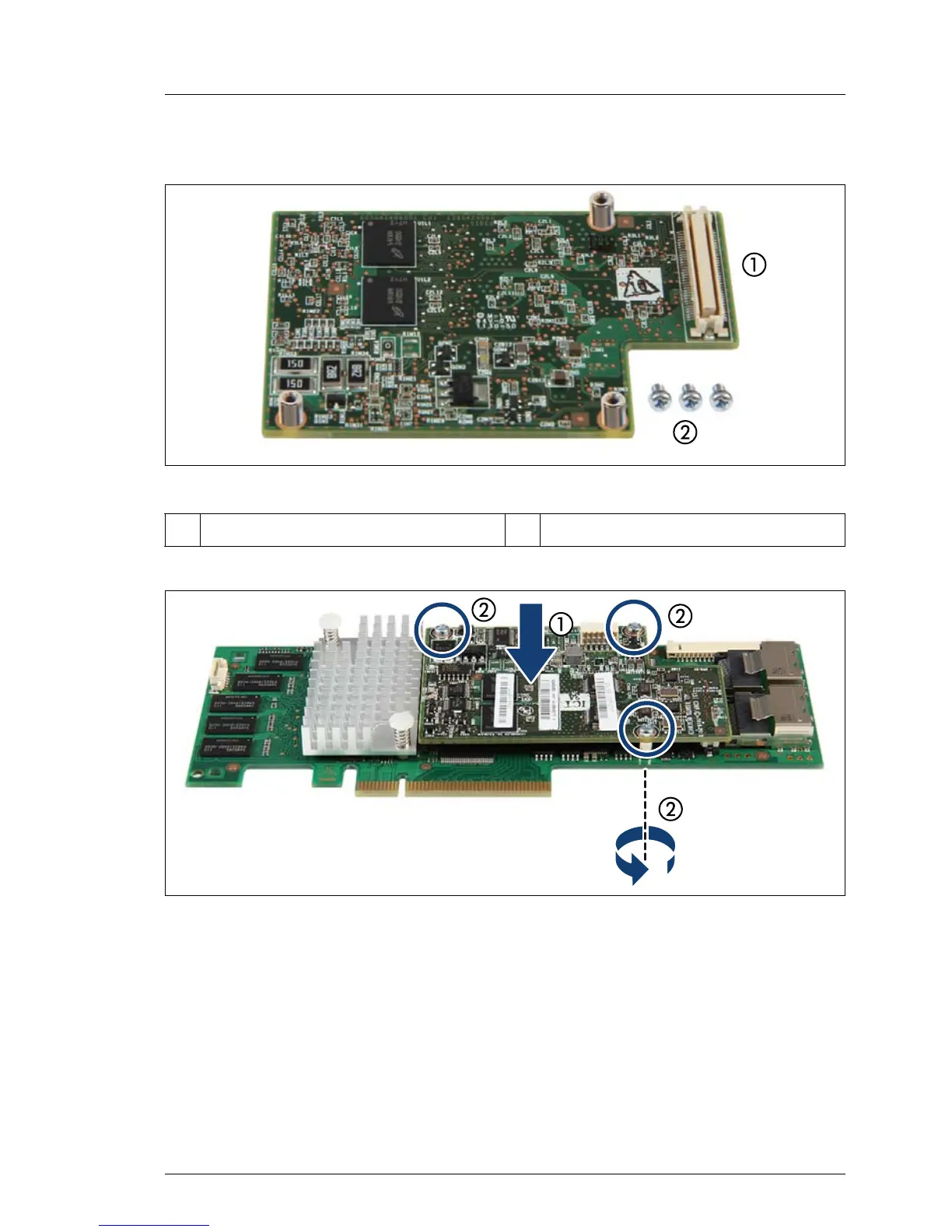

Figure 85: TFM kit
Figure 86: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Fasten the TFM on the RAID controller with the three screws from the TFM
kit (screw torque: 0.4 Nm)(2).
1 TFM 2 Screws
