Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives
7.2.3.2 Removing a 2.5-inch HDD / SSD module

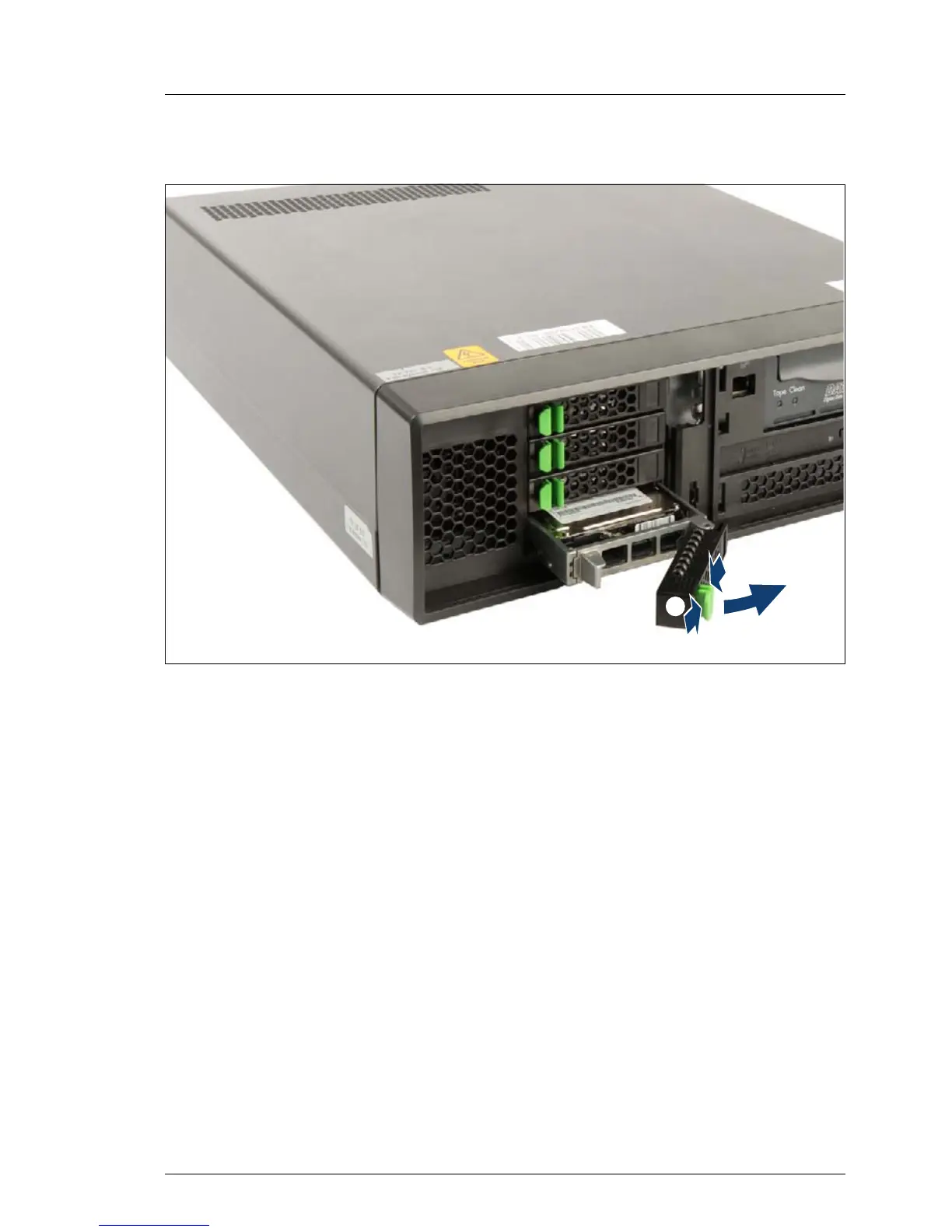

Figure 39: Disconnecting a 2.5-inch HDD / SSD module
Ê Pinch the green locking clips (1) and fully open the locking lever (2).
I Thereby, the HDD / SSD module is pushed out of its drive bay by
about 1 cm and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
/
0

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
