Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

60 Upgrade and Maintenance Manual TX1320 M1
Basic hardware procedures
4.4 Opening the front cage
4.4.1 3.5-inch hard disk drive version

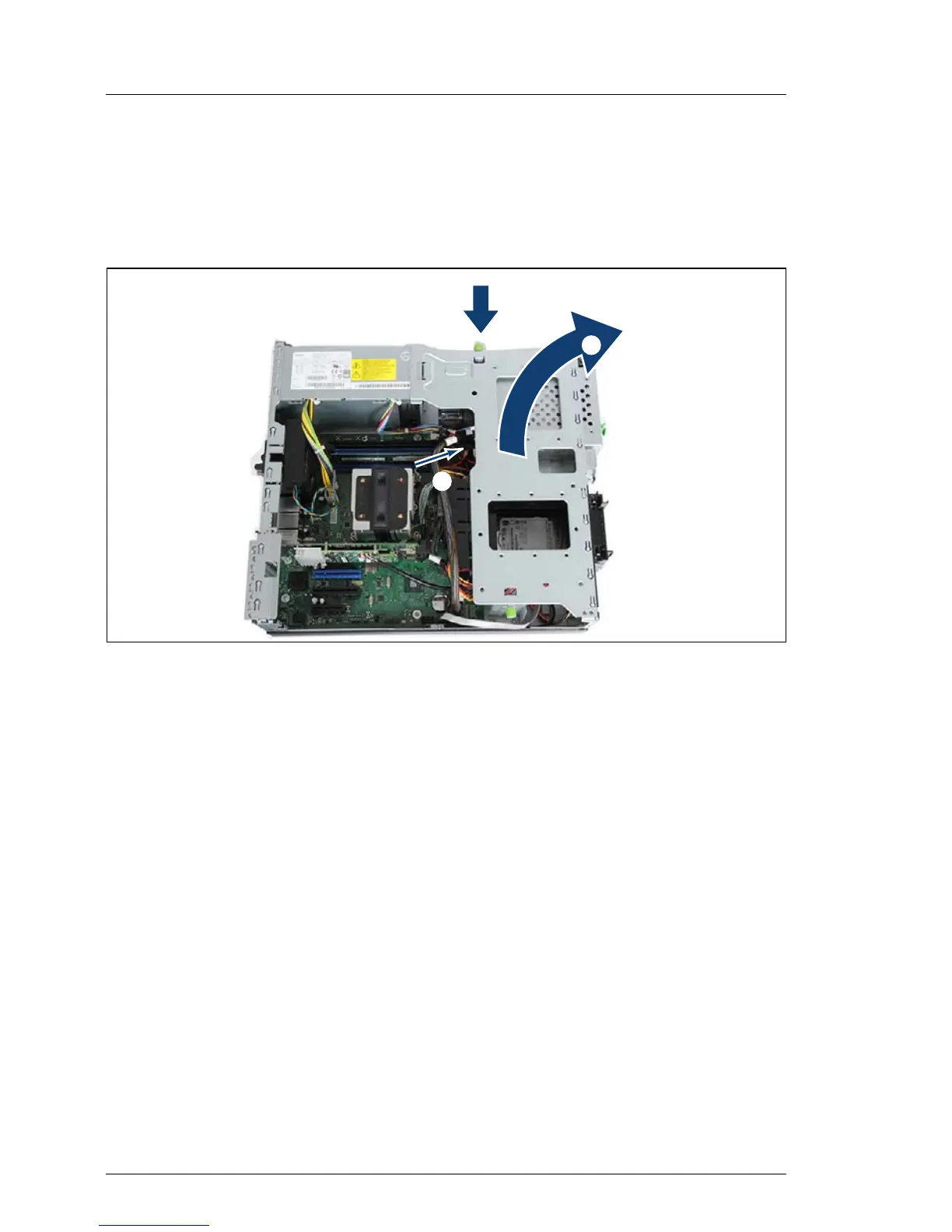

Figure 16: Opening the front cage
Ê Loosen the captive knurled thumb screw on the front cage (1).
Ê Remove the HDD fan cable from the system board (2).
Ê Remove the SATA cable from the system board.
Ê Carefully fold open the front cage (3).
햲
햳
햴
