Hard disk drives / solid state drives
7.4.1.6 Concluding steps
Ê Install the HDD fan as described in section "Installing the HDD fan module"
on page 170.
I For a complete cabling overview, please refer to section "Cabling" on
page 319.
Ê Close the front cage as described in section "Closing the front cage" on
page 62.

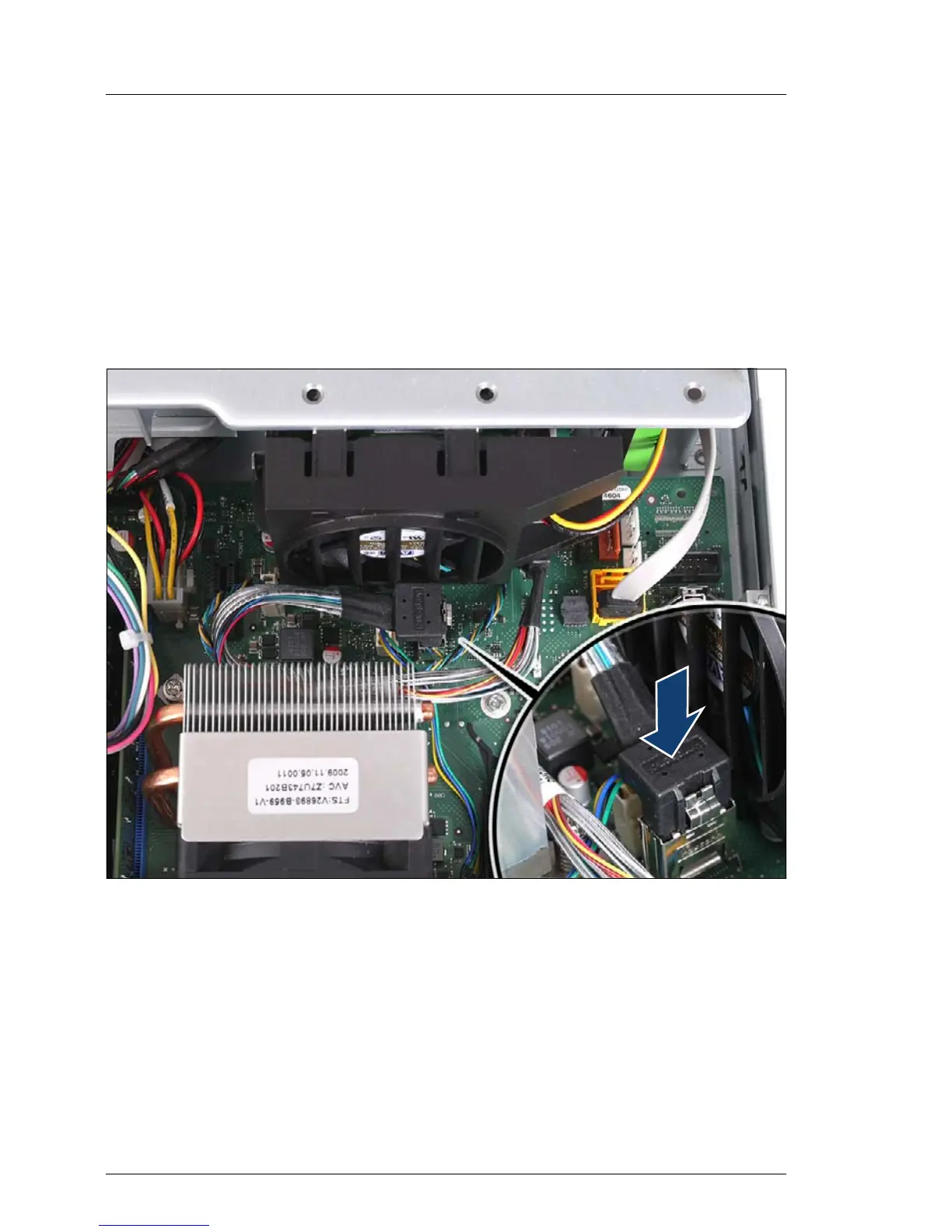

Figure 59: Connecting the SATA connector to the system board
Ê Reconnect the SATA cable to the system board.
Ê Reinstall the HDD fan as described in section "Installing the HDD fan
module" on page 170.
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê Reinstall all HDD modules to their original drive bays as described in section
"Installing 2.5-inch HDD / SSD modules" on page 118.
