Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

162 Upgrade and Maintenance Manual TX1320 M1
System fan and HDD fan
8.2.1.4 Installing the fan into the holder

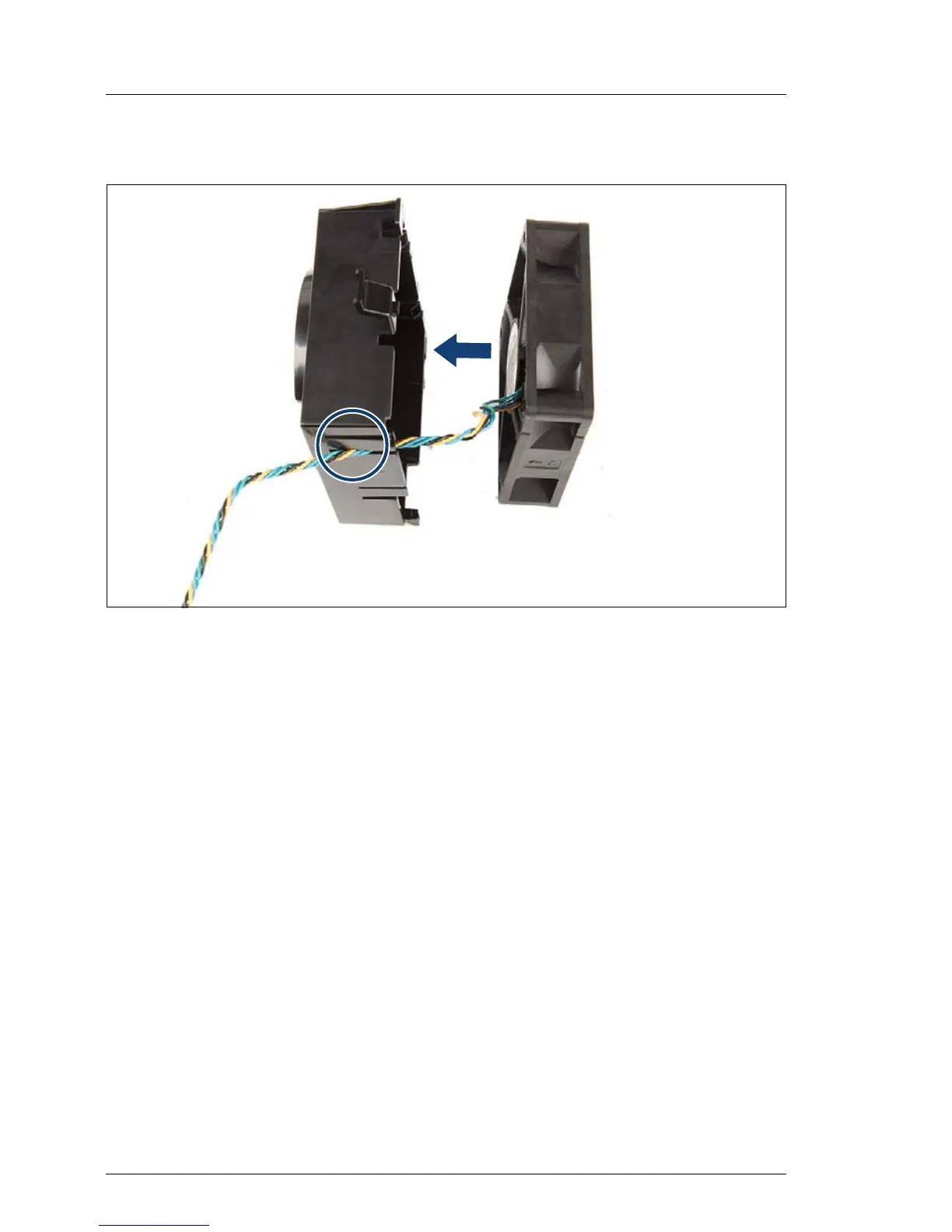

Figure 69: Inserting the fan into the 3.5-inch holder
Ê Route the cable as shown (see circle).
Ê Insert the fan into the holder (see arrow).

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
