322 Upgrade and Maintenance Manual
TX1320 M1
Appendix
16.1.2 Server rear

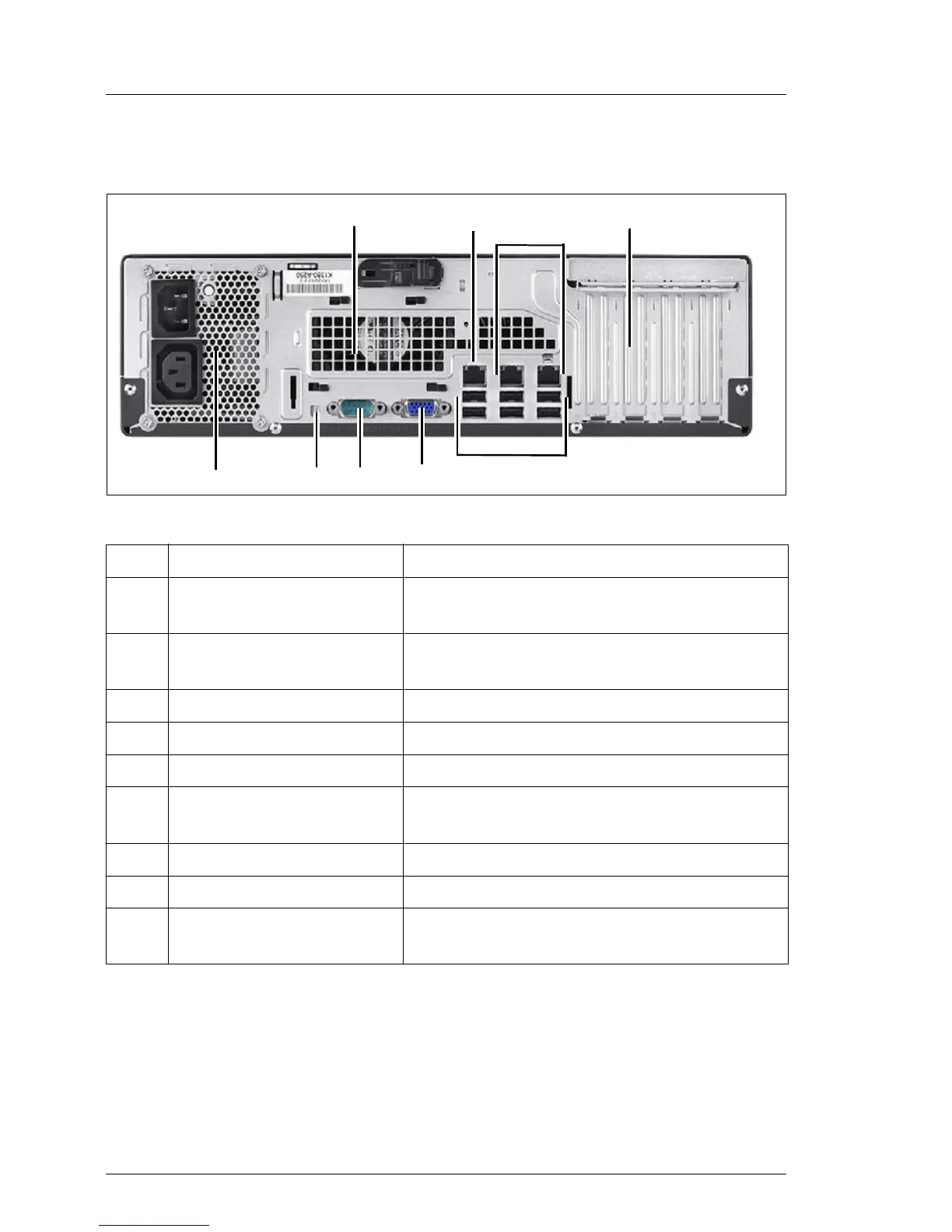

Figure 202: PRIMERGY TX1320 M1 rear
Pos. Component Reference
1 Standard power supply
unit
"Replacing the standard power supply unit"
on page 108
2 CSS / Global Error / ID
indicators
"I/O panel indicators" on page 332
3 Serial connector
4 VGA video connector
5 USB connectors 1-6
6 Management LAN
connector
7 Gigabit LAN connectors
8 Optional expansion card "Replacing expansion cards" on page 181
9 System fan "Replacing the system fan module" on
page 152
1
3
4
5
/
0
7
6
2
