Fujitsu PRIMERGY TX1320 M1

TX1320 M1 Upgrade and Maintenance Manual 145
Hard disk drives / solid state drives
7.4.1.4 Installing the 2.5-inch HDD SAS / SATA backplane

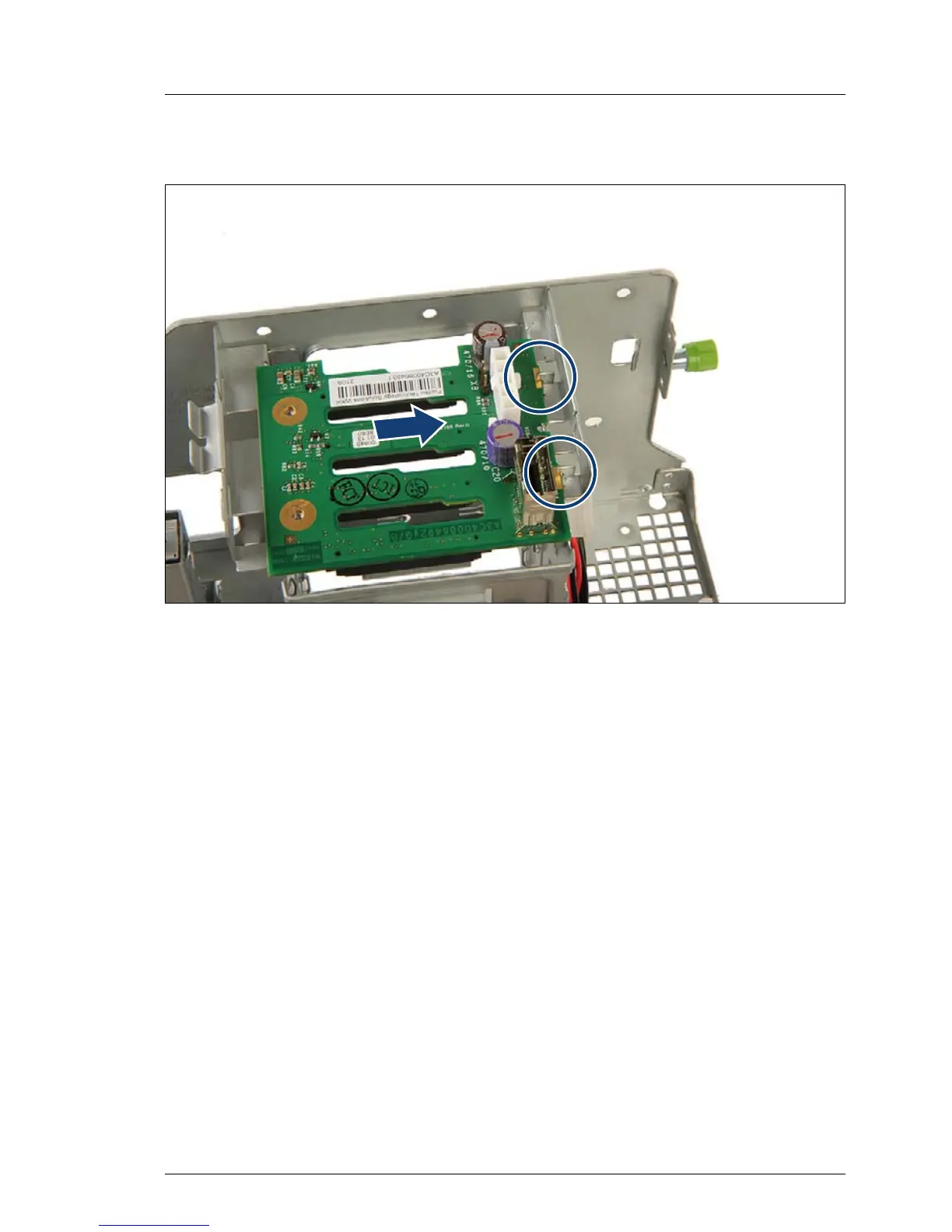

Figure 55: Installing the 2.5-inch HDD SAS / SATA backplane
Ê At a slight angle, fit the new 2.5-inch HDD SAS/SATA backplane into the two
guides on the drive cage.
