Fujitsu PRIMERGY TX1320 M1 Upgrade And Maintenance Manual

TX1320 M1 Upgrade and Maintenance Manual 191
Expansion cards and backup units

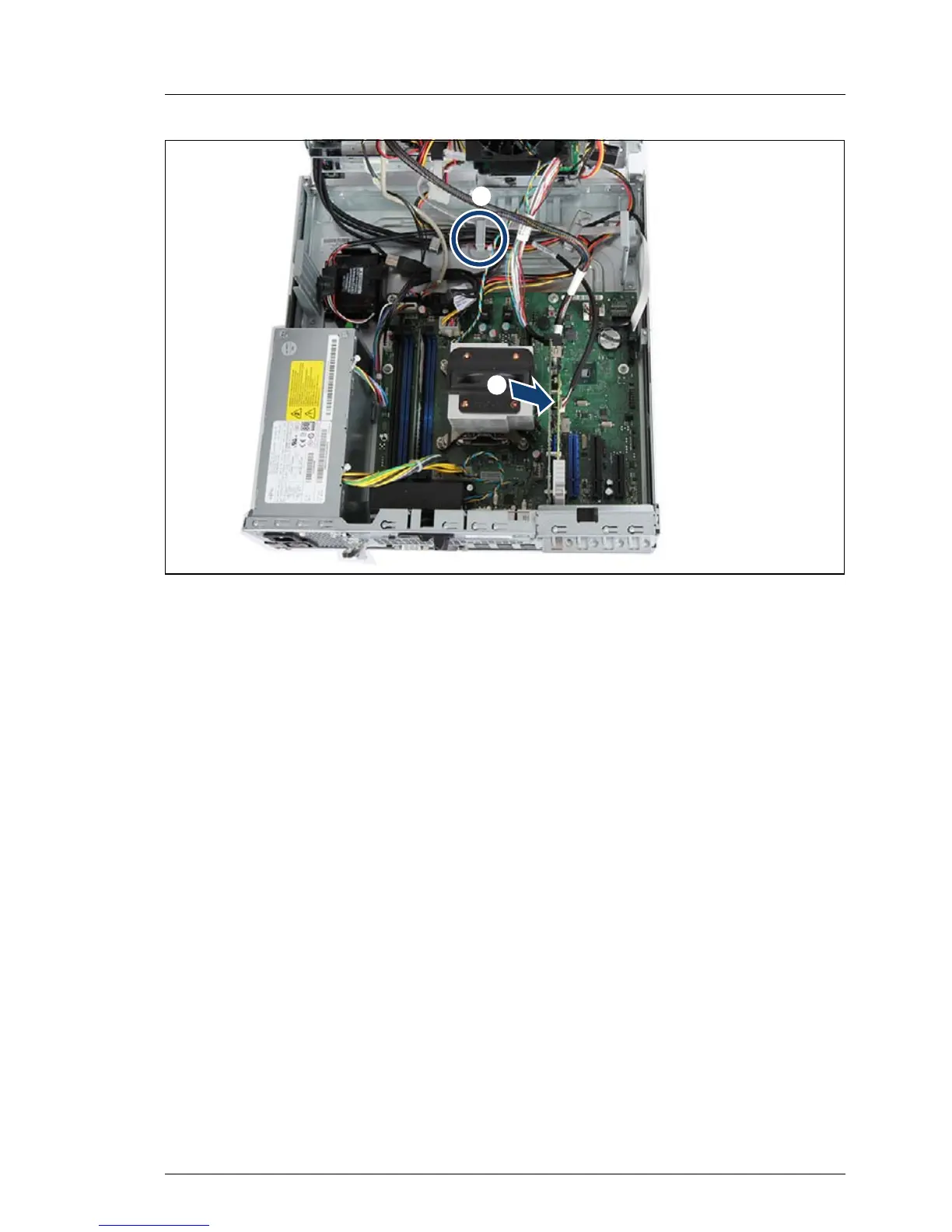

Figure 92: Cabling of the FBU
Ê Run the FBU adapter cable through the middle cable bracket as shown (see
circle) (1).
Ê Connect the FBU adapter cable to the TFM module on the SAS RAID
controller D3116 (2).
9.3.1.6 Concluding steps
Perform the following procedures to complete the task:
Ê Close the front cage as described in section "Closing the front cage" on
page 62.
Ê Close the server cover as described in section "Closing the server" on
page 64.
Ê Reconnect the AC power cord to the power supply unit.
Ê If applicable, update the firmware of the RAID controller that has been
connected to the FBU as described in section "Updating RAID controller
firmware" on page 87.
Ê Enable boot watchdog functionality as described in section "Enabling SVOM
boot watchdog functionality" on page 92.
햲
햳

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
