TX1320 M1 Upgrade and Maintenance Manual 179
Expansion cards and backup units
9.2.2.2 Removing an expansion card

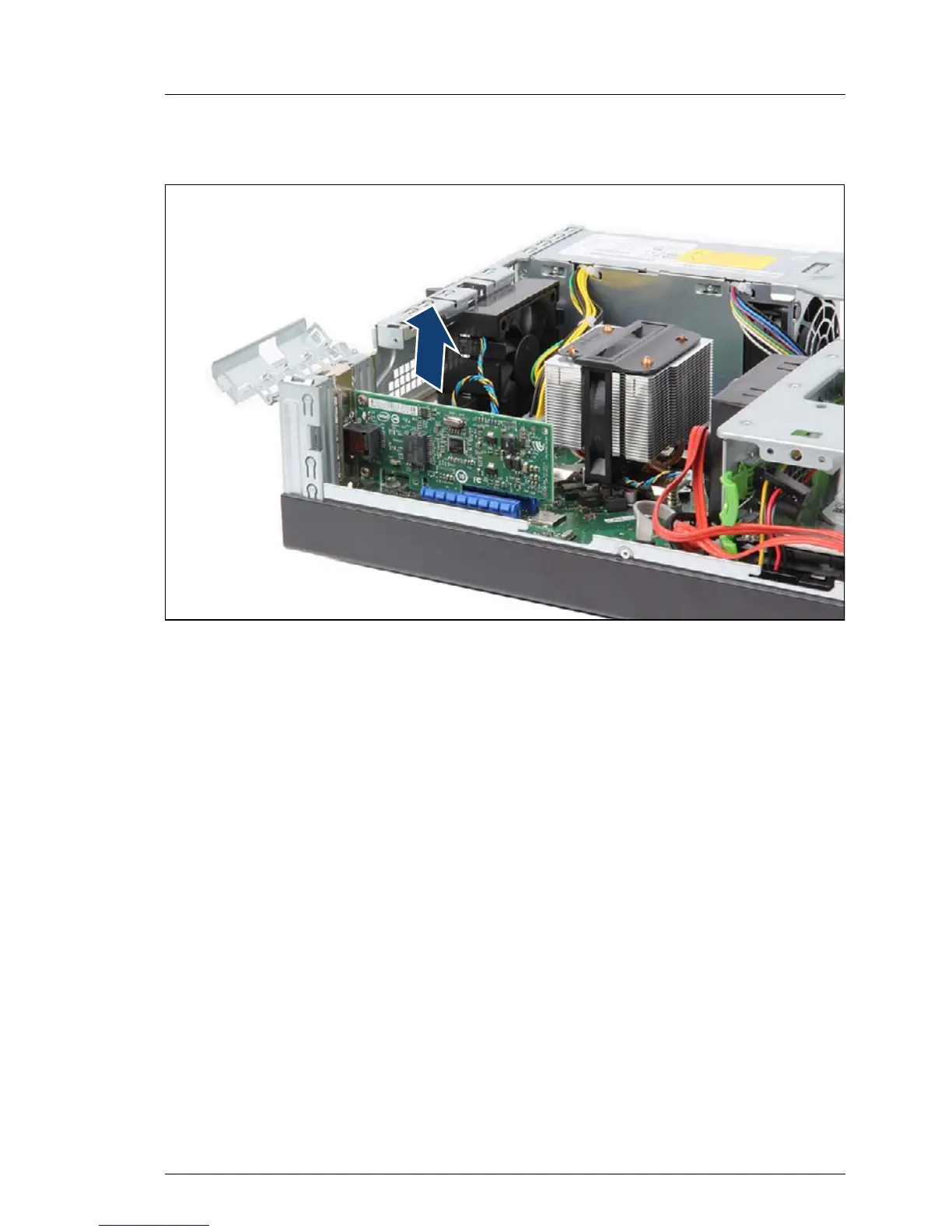

Figure 82: Removing an expansion card
Ê Fold up the locking handle on the slot bracket clamp.
Ê If applicable, remove SFP+ transceiver modules from the expansion card,
as described in section "Replacing SFP+ transceiver modules" on page 214.
Ê Carefully remove the expansion card from its slot.

Fujitsu PRIMERGY TX1320 M1 Specifications

General

Processor Sockets	1
Memory Slots	4
Form Factor	Tower
Processor	Intel Celeron
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
RAID Support	RAID 0, 1, 10
Network Controller	Dual-port Gigabit Ethernet
Operating System Support	Linux
